Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts

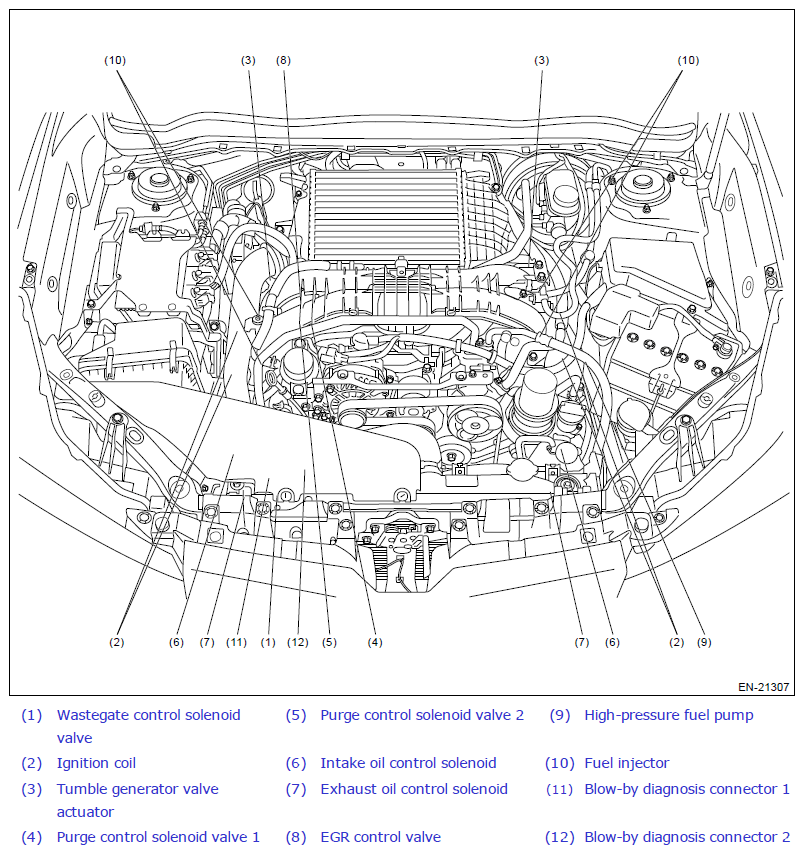

Fig 1: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

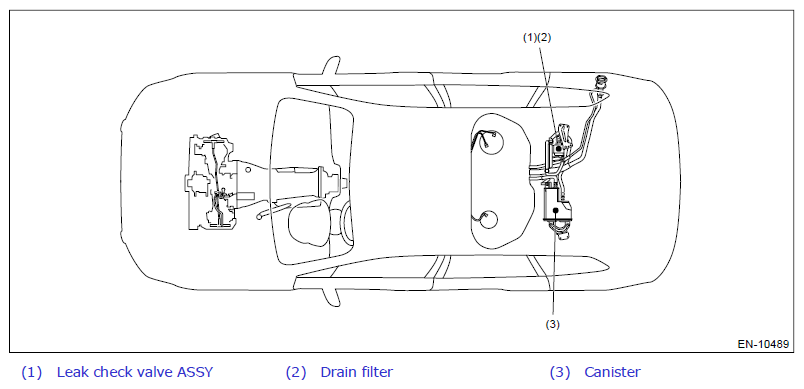

Fig 2: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

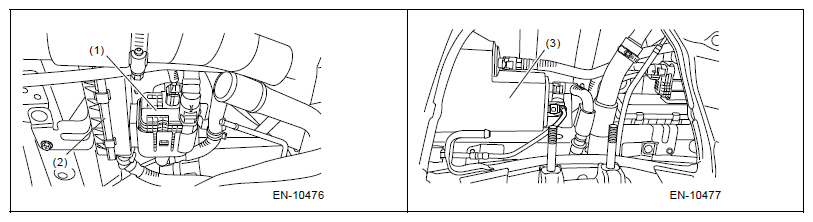

Fig 3: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

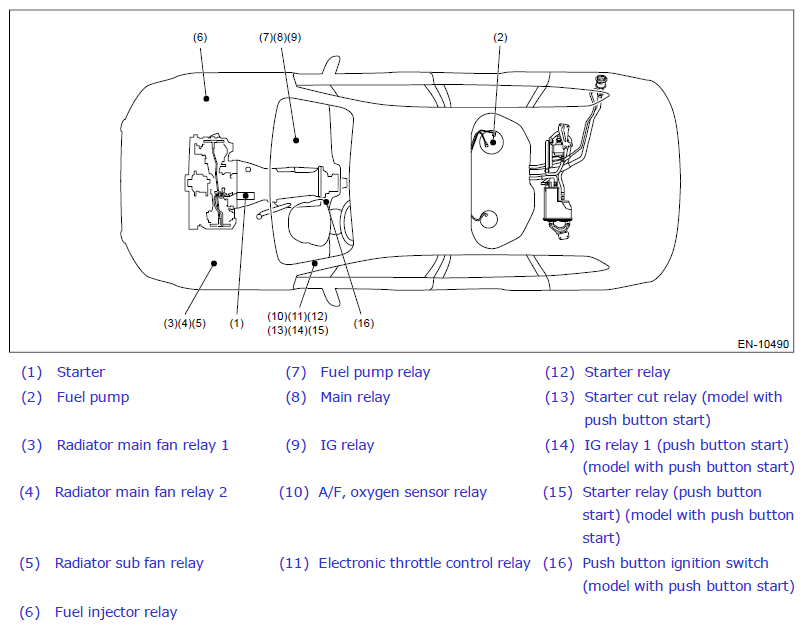

Fig 4: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

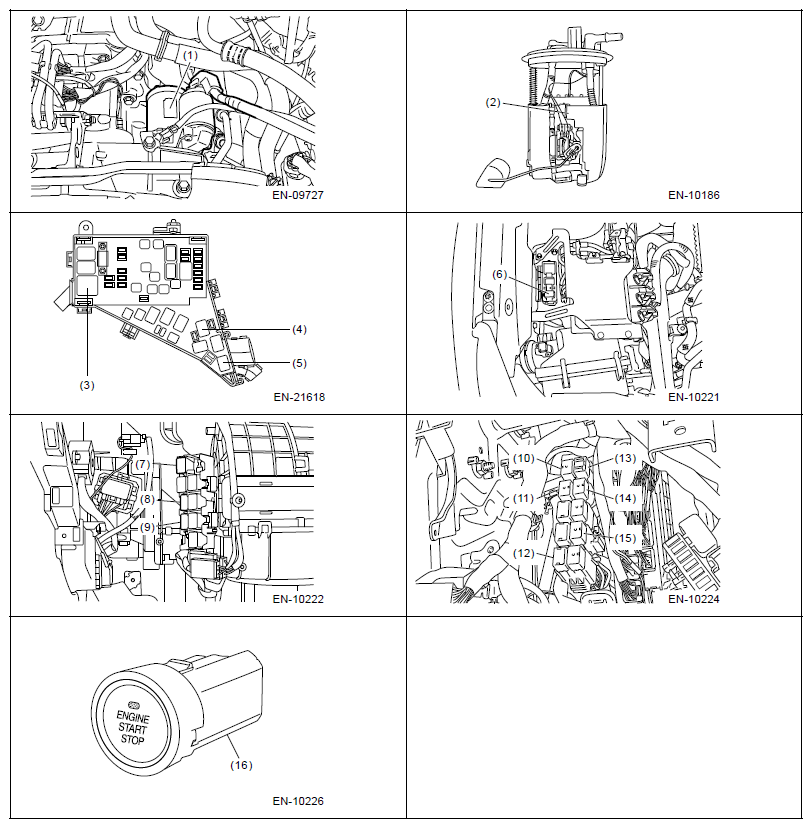

Fig 5: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

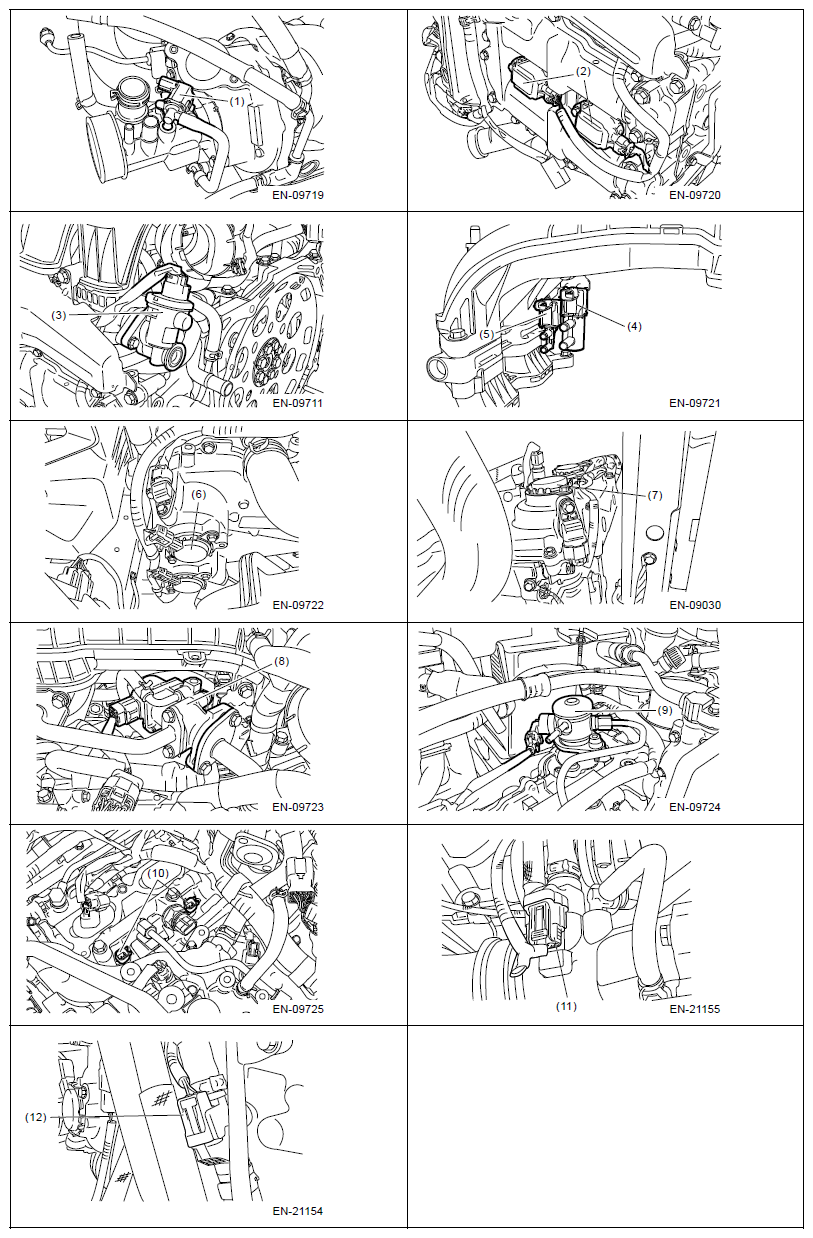

Fig 6: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Components Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
