High-Pressure Fuel Pump Case

Remove the high-pressure fuel pump. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Pump>REMOVAL>HIGH-PRESSURE FUEL PUMP .
Remove the air intake adapter LH from the cylinder head.

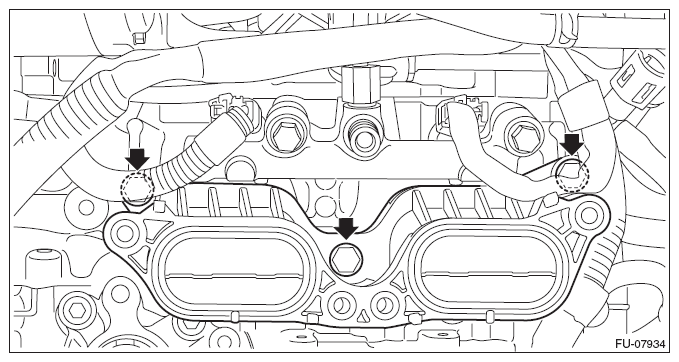

Fig 1: Locating Air Intake Adapter (LH) Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the high-pressure fuel pump case from the cam carrier assembly LH.

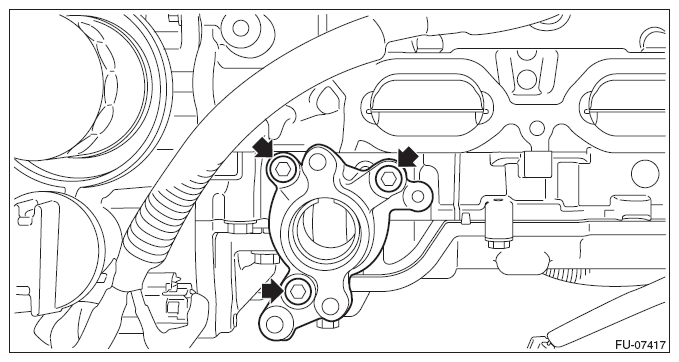

Fig 2: Locating High Pressure Fuel Pump Case Bolts

Courtesy of SUBARU OF AMERICA, INC.
