Fuel Pipe Insulator No. 3

  1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel>PROCEDURE>DRAINING FUEL (WITH SUBARU SELECT MONITOR) .
  2. Disconnect the ground cable from battery.
  3. Open the fuel filler lid and remove the fuel filler cap.
  4. Remove the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>REMOVAL .
  5. Disconnect the connector (A) from the EGR control valve.
  6. Remove the bolts (B) securing the EGR cooler to the EGR control valve.
  7. Remove the preheater hose (C) from the EGR control valve.

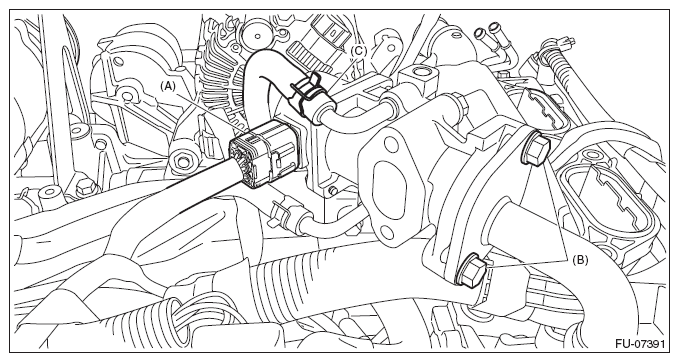

    Fig 1: Identifying Connector, Bolts And Preheater Hose
    G09479651Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the EGR control valve.

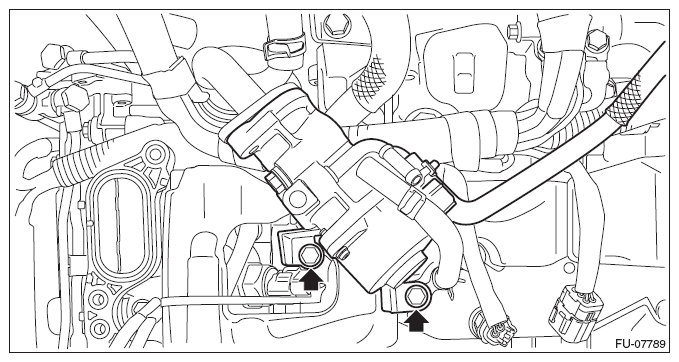

    Fig 2: Locating EGR Control Valve Bolts
    G09479652Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the connector (A) on the fuel pressure sensor, and remove the fuel pipe insulator No. 3.

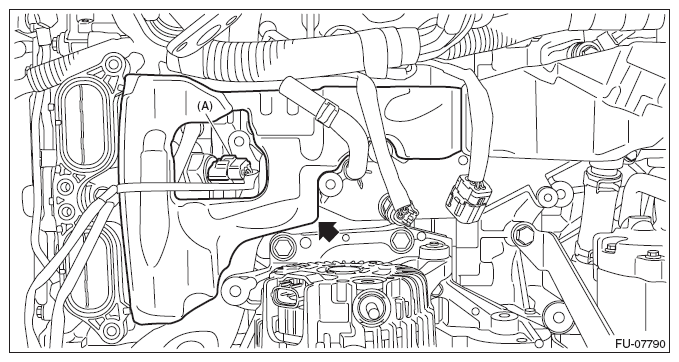

Fig 3: Locating Fuel Pipe Insulator And Connector
G09479653Courtesy of SUBARU OF AMERICA, INC.
