Engine Mechanical (H4DOTC): V-belt: Installation: Inspection
- Check the V-belt for cracks, tear or wear.
- Check the V-belt tensioner assembly and idler pulley for deformation, cracks or other damages.
- Check that the V-belt ribs are securely placed on the rib grooves for each pulley.
Courtesy of SUBARU OF AMERICA, INC.

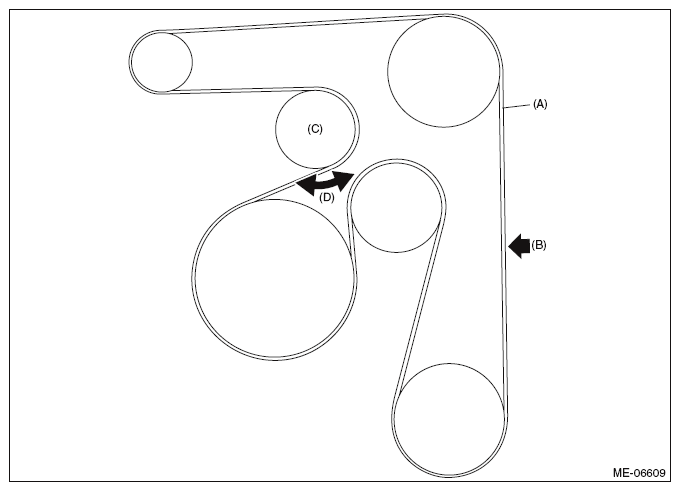

- Check that the V-belt tensioner assembly (C) moves in the direction of arrow (D), when the V-belt (A) is pushed and released by the area indicated by the arrow (B).
Courtesy of SUBARU OF AMERICA, INC.
- Start the engine and confirm that the V-belt rotates smoothly and no abnormal noise is emitted.
