Timing Chain & Camshaft

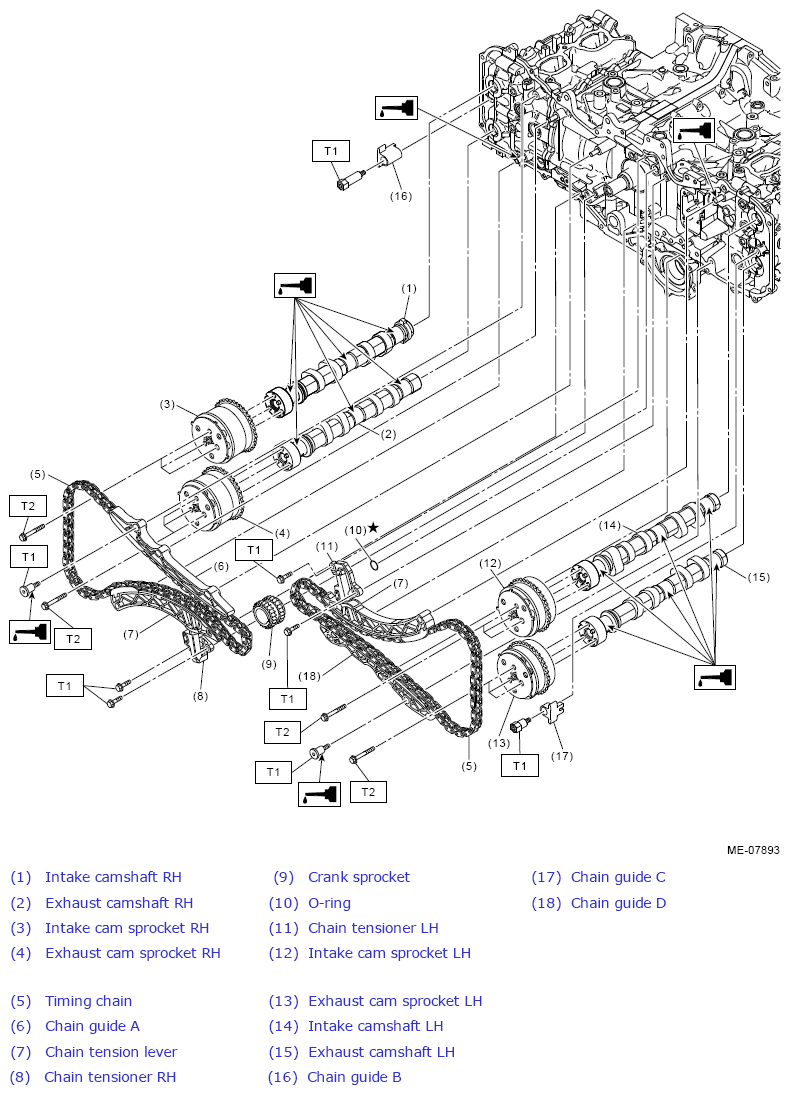

Fig 1: Exploded View Of Timing Chain & Camshaft With Torque Specification
G11266676Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 18 (1.8, 13.3)
