Rocker Cover

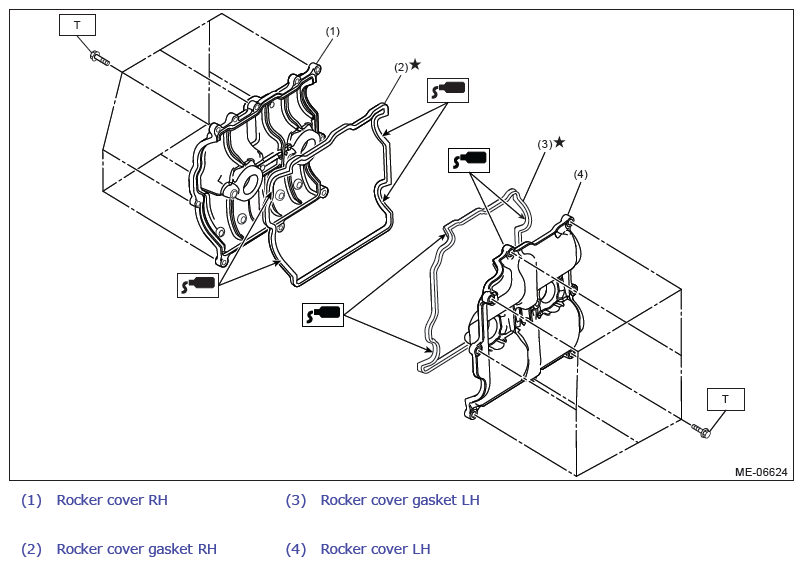

Fig 1: Exploded View Of Rocker Cover With Torque Specification
G11266678Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to MECHANICAL (H4DOTC)>Rocker Cover>INSTALLATION .
