Crankshaft And Piston

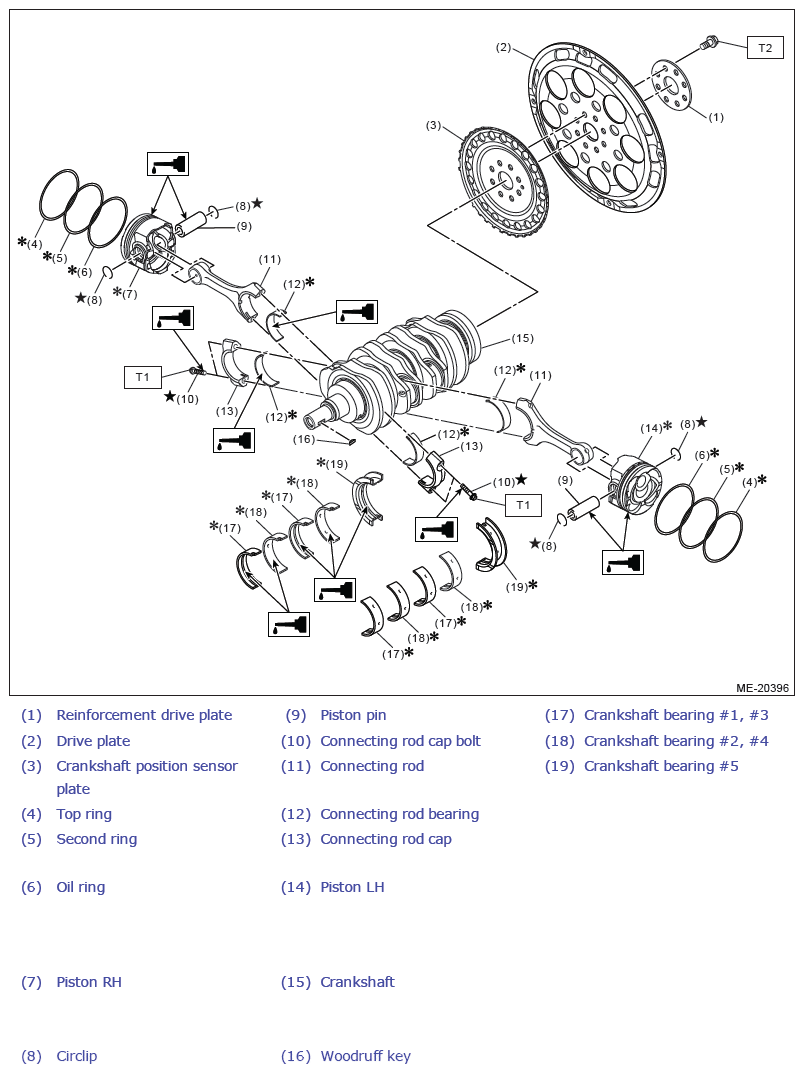

Fig 1: Exploded View Of Crankshaft And Piston With Torque Specification
G11266684Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1:  Ref. to MECHANICAL (H4DOTC)>Cylinder Block>INSTALLATION .

T2:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Drive Plate>INSTALLATION .
