Crank Sprocket: Installation

  1. Install the crank sprocket.
    NOTE: The direction of installation is not specified for the crank sprocket.

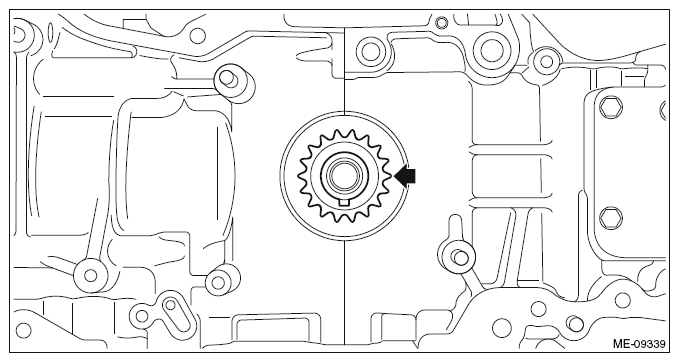

    Fig 1: Locating Crank Sprocket
    G10291863Courtesy of SUBARU OF AMERICA, INC.
  2. Install the timing chain. Ref. to MECHANICAL (H4DOTC)>Timing Chain Assembly>INSTALLATION .
  3. Install the chain cover. Ref. to MECHANICAL (H4DOTC)>Chain Cover>INSTALLATION .
