Cam Carrier RH

Filter insert position:

0⁺⁰_-0.5 mm (⁺⁰_-0.0197 in) position from cam carrier RH end face

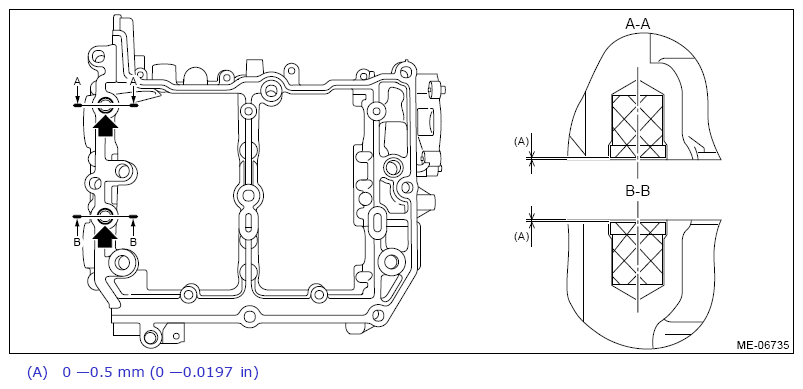

Fig 1: Locating Filter To Cam Carrier RH

Courtesy of SUBARU OF AMERICA, INC.

1. Apply liquid gasket to the mating surface of front camshaft cap RH, intake rear camshaft cap RH and exhaust rear camshaft cap RH as shown in the figure.
   CAUTION:

   • Do not apply liquid gasket excessively. Applying excessively may cause excess gasket to flow toward camshaft journal, resulting in engine seizure.
   • Do not apply liquid gasket excessively to the intake center camshaft cap RH and exhaust center camshaft cap RH.
   NOTE:

   • Before applying liquid gasket, degrease the old liquid gasket seal surface of the front camshaft cap RH, intake rear camshaft cap RH, exhaust rear camshaft cap RH, and cam carrier RH.
   • Install within 5 min. after applying liquid gasket.

   Liquid gasket:

   THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

   Liquid gasket applying diameter:

   Mating surfaces other than ranges A and B

   2±0.5 mm (0.0787±0.0197 in)

   Mating surfaces of range A

   3⁺¹_-0.5 mm (0.1181^+0.0394_-0.0197 in)

   Mating surfaces of range B

   3.5±0.5 mm (0.1378±0.0197 in)

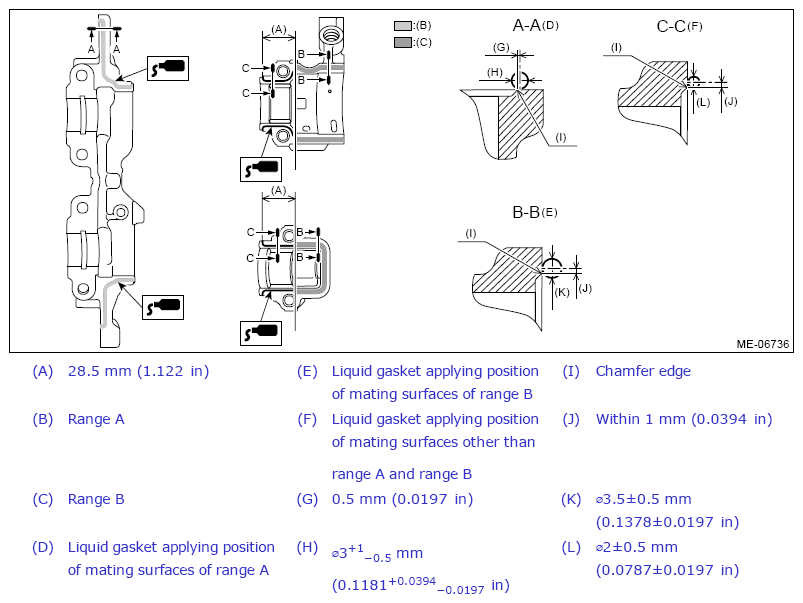

   Fig 2: Applying Liquid Gasket To Mating Surface Of Front Camshaft Cap RH

   Courtesy of SUBARU OF AMERICA, INC.
2. Apply engine oil to the journals of each camshaft cap before setting the camshaft cap.
3. Tighten the bolts which secure front camshaft cap RH, intake center camshaft cap RH, intake rear camshaft cap RH, exhaust center camshaft cap RH and exhaust rear camshaft cap RH in numerical order as shown in the figure.
4. Remove the liquid gasket from the installation area of scavenge pump.
   NOTE: This procedure is required to prevent the coupling of scavenge pump and liquid gasket contacting with each other resulting in poor sealing.
   1. Remove the liquid gasket in portions (A) in the arrowed direction (from inside to outside) shown in figure using a scraper.
   CAUTION: To avoid poor sealing, pay special attention to the following:

   • Remove the liquid gasket within five minutes after installing the camshaft cap.
   • Do not use cloth when removing the liquid gasket.
   • Do not remove liquid gasket in the opposite direction from arrow (from outside to inside).

   Courtesy of SUBARU OF AMERICA, INC.

1. Set the oil pipe to the cam carrier RH, and temporarily tighten the bolts which secure the oil pipe to the cam carrier RH.
   NOTE: Use a new gasket.
   Fig 3: Locating Oil Pipe To Cam Carrier RH With Bolts

   Courtesy of SUBARU OF AMERICA, INC.
2. Tighten the bolts which secures the oil pipe to the cam carrier RH in numerical order as shown in the figure.

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 31 N.m (3.2 kgf-m, 22.9 ft-lb)

Fig 4: Oil Pipe To Cam Carrier RH Bolts Tightening Sequence

Courtesy of SUBARU OF AMERICA, INC.
