Engine Intake System (Induction) And Turbocharger (H4DOTC): Turbocharger: Disassembly

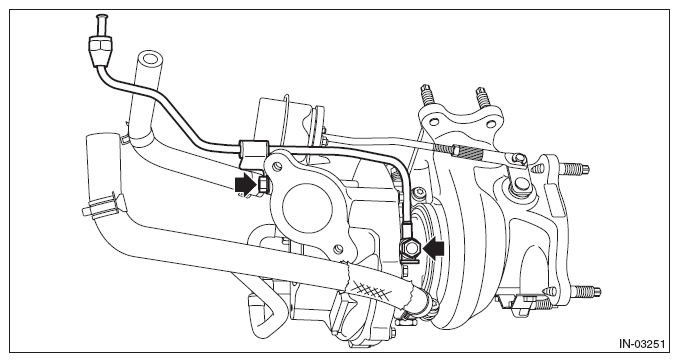

1. Remove the union screw pipe assembly from the turbocharger.
   Fig 1: Locating Union Screw Pipe Assembly From Turbocharger

   Courtesy of SUBARU OF AMERICA, INC.

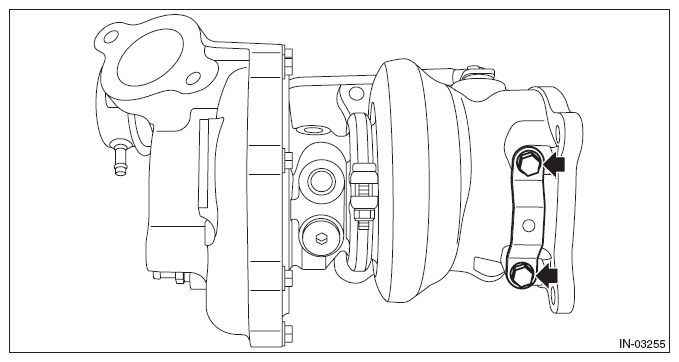

2. Remove the turbocharger pipe from the turbocharger.
   Fig 2: Locating Turbocharger Pipe Bolts

   Courtesy of SUBARU OF AMERICA, INC.

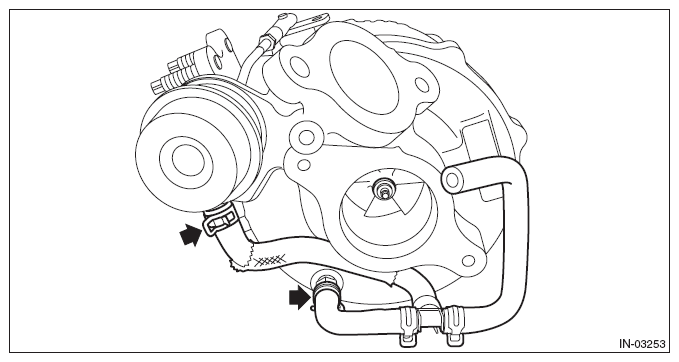

3. Remove the air control hose from the turbocharger.
   Fig 3: Locating Air Control Hose Clips

   Courtesy of SUBARU OF AMERICA, INC.

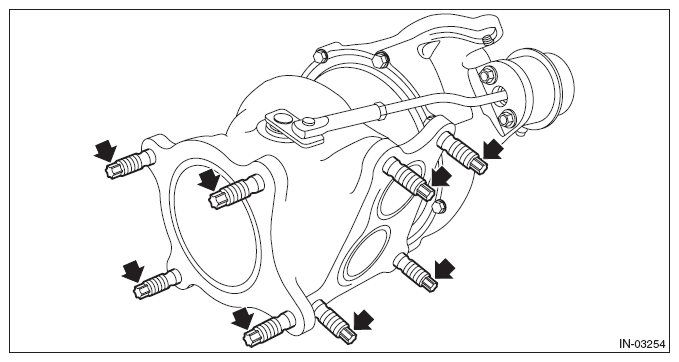

4. Remove the stud bolt from the turbocharger.
   Fig 4: Locating Stud Bolts From Turbocharger

   Courtesy of SUBARU OF AMERICA, INC.

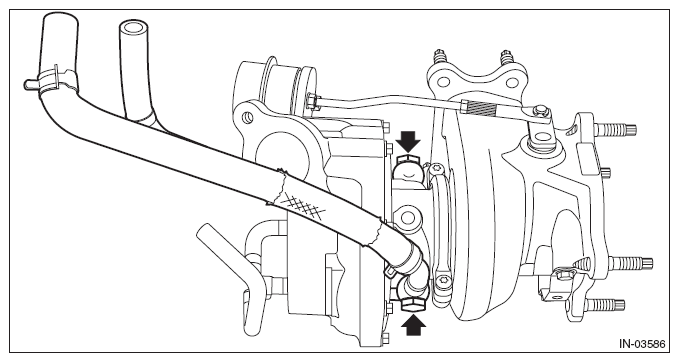

5. Remove the exhaust stay from the turbocharger.

Fig 5: Locating Exhaust Stay From Turbocharger With Bolts

Courtesy of SUBARU OF AMERICA, INC.
