Intake Duct No. 3

  1. Remove the collector cover.
    1. Remove the clip (A).
    2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
    3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
    Fig 1: Removing Collector Cover
    G10403792Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
  3. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  4. Remove the brake booster vacuum hose from the clip, and place the brake booster vacuum hose aside so that it does not interfere with the work.
    Fig 2: Locating Brake Booster Vacuum Hose From Clip
    G09479960Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the intake duct No. 3 from the throttle body.

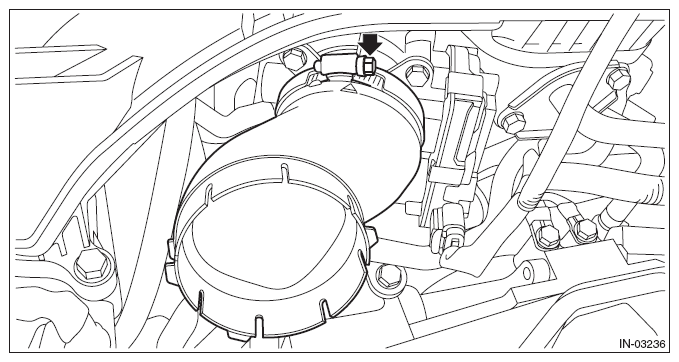

Fig 3: Locating Intake Duct No. 3 From Throttle Body With Bolt
G09480084Courtesy of SUBARU OF AMERICA, INC.
