Intake Duct No. 3

Align the triangle mark (A) on the intake duct No. 3 to the rib (B) on the throttle body, and install the intake duct No. 3 to the throttle body.
NOTE:
- Use a new insulator.
- Apply a thin coat of SUBARU PS fluid (K0515YA000) or liquid paraffin to the inner periphery of the insulator.
- When inserting the intake duct No. 3 to the throttle body, be careful that the insulator is not turned over.
Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

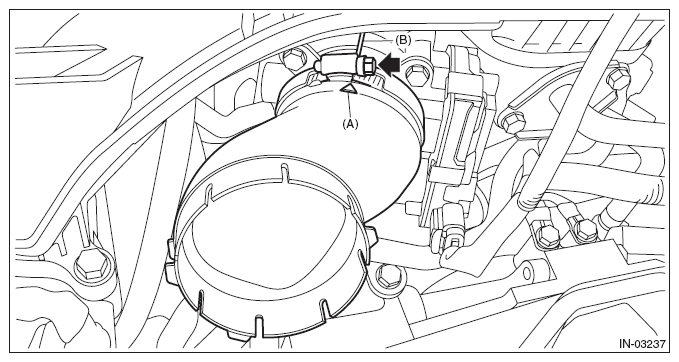

Fig 1: Aligning Triangle Mark On Intake Duct No. 3 To Rib On Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Install the brake booster vacuum hose to the clip.
NOTE: If the clip is removed from the intake manifold, install the clip to the position of alignment mark of intake manifold.

Fig 2: Locating Brake Booster Vacuum Hose To Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>INSTALLATION .
Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERY .
Install the collector cover.
