Intake Duct No. 1

Install the vacuum hose, blow-by diagnosis connector harness and wastegate control solenoid valve to the intake duct No. 1.

NOTE:
  • Use new O-rings.
  • When tightening the wastegate control solenoid valve, check that it is securely seated.

Tightening torque:

2.8 N.m (0.3 kgf-m, 2.1 ft-lb)

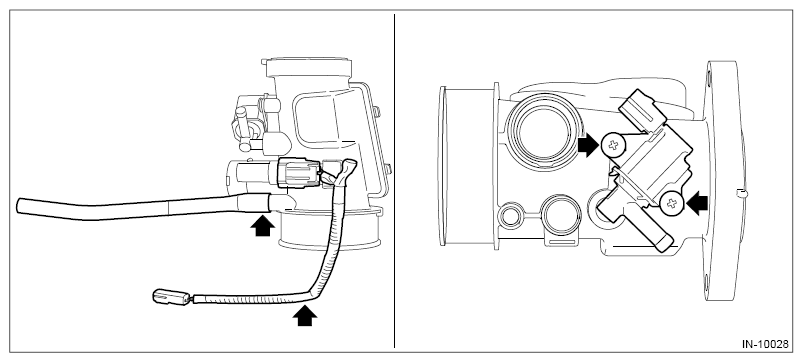

Fig 1: Locating Vacuum Hose And Blow-By Diagnosis Connector Harness
G11266636Courtesy of SUBARU OF AMERICA, INC.
