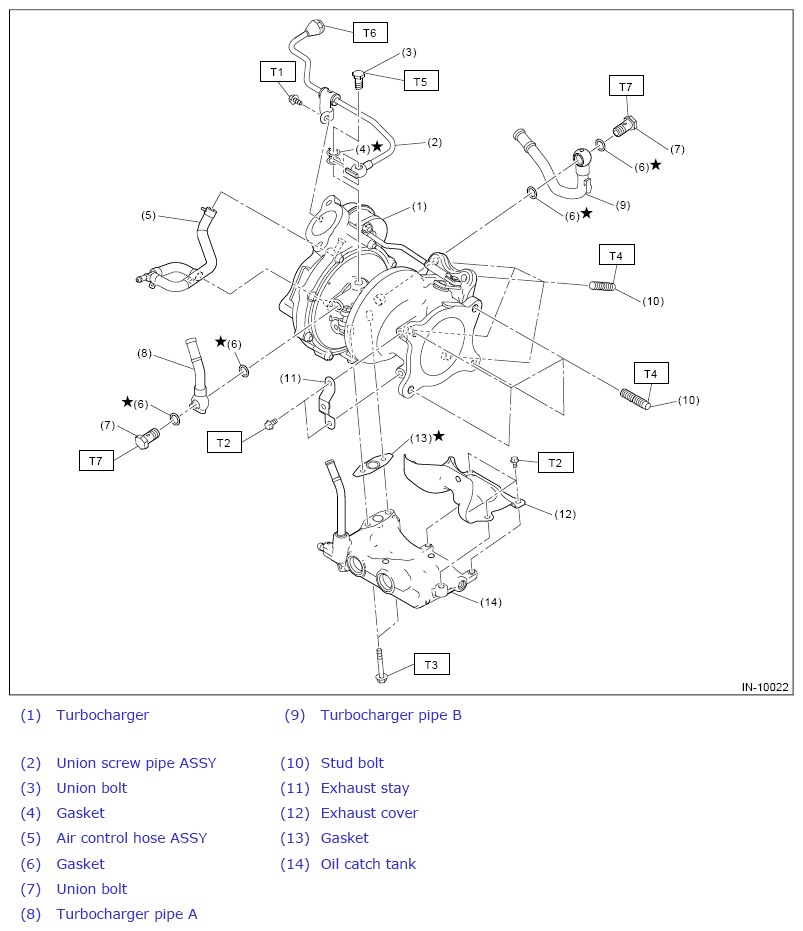

Components With Torque Specifications: Turbocharger
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.8 (0.7, 5.1)
T2: 7.15 (0.7, 5.3)
T3: 10.5 (1.1, 7.7)
T4: 14.7 (1.5, 10.8)
T5: 16 (1.6, 11.8)
T6: 20 (2.0, 14.8)
T7: 31.5 (3.2, 23.2)
- Prior to starting work, pay special attention to the following:
- Always wear work clothes, a work cap, and protective shoes. Additionally, wear a helmet, protective goggles, etc. if necessary.
- Protect the vehicle using a seat cover, fender cover, etc.
- Prepare the service tools, clean cloth, containers to catch grease and oil, etc.
- Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
- When performing a repair, identify the cause of trouble and avoid unnecessary removal, disassembly and replacement.
- Before disconnecting connectors of sensors or units, be sure to disconnect the ground cable from battery.
- Always use the jack-up point when the shop jacks or rigid racks are used to support the vehicle.
- Remove contamination including dirt and corrosion before removal, installation, disassembly or assembly.
- Keep the removed parts in order and protect them from dust and dirt.
- All removed parts, if to be reused, should be reinstalled in the original positions with attention to the correct directions, etc.
- Bolts, nuts and washers should be replaced with new parts as required.
- Be sure to tighten the fasteners including bolts and nuts to the specified torque.
