Intake Duct And INTERCOOLER

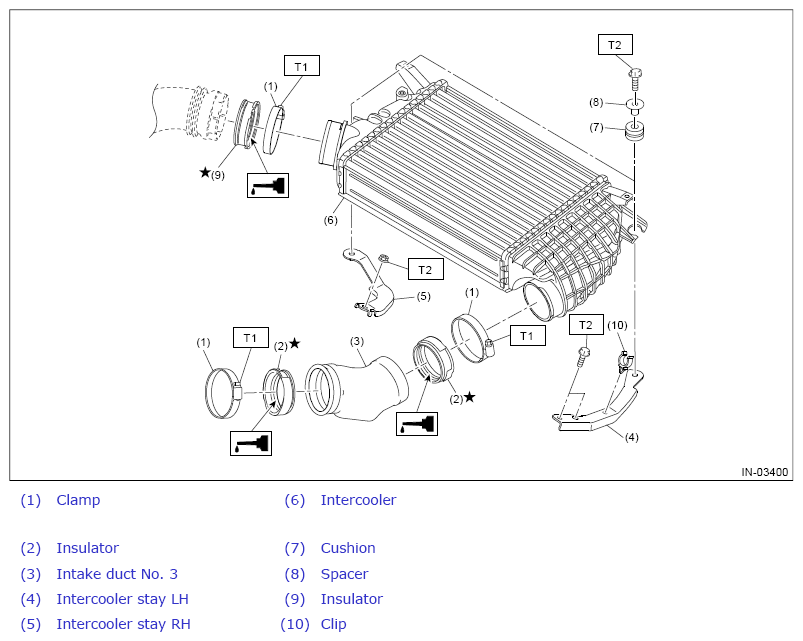

Fig 1: Exploded View Of Intake Duct And Intercooler With Torque Specification
G11266580Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3 (0.3, 2.2)

T2: 16 (1.6, 11.8)
