Air Intake Boot: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
  2. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Cleaner Case>REMOVAL .
  3. Lift up the vehicle.
  4. Remove the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  5. Remove the air intake boot from the intake duct No. 1.
    Fig 1: Locating Air Intake Boot From Intake Duct No. 1 With Bolt
    G11266598Courtesy of SUBARU OF AMERICA, INC.
  6. Lower the vehicle.
  7. Remove the nuts which secure the turbo duct to the vehicle, and remove the air intake boot from the upper side of the vehicle together with the turbo duct.

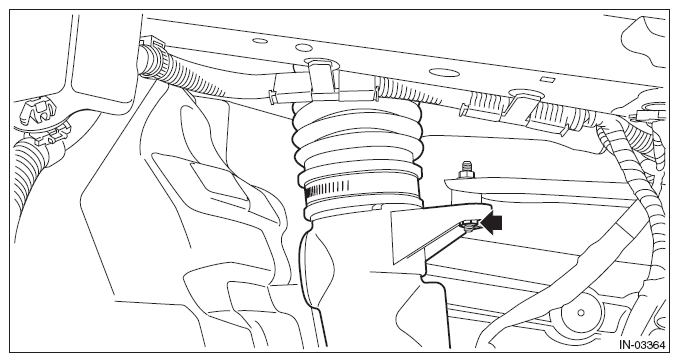

    Fig 2: Locating Turbo Duct To Vehicle With Nuts
    G09480063Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the duct bracket from the vehicle.

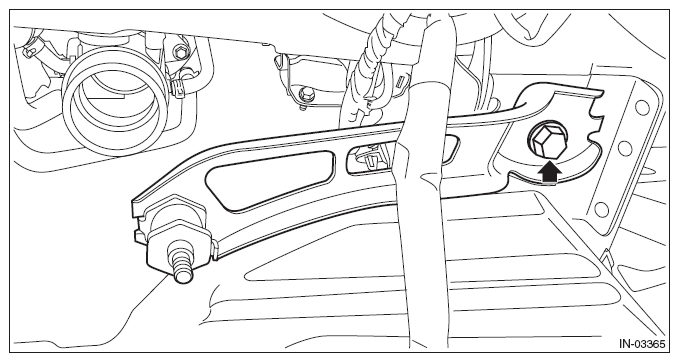

    Fig 3: Locating Duct Bracket Bolt
    G09480064Courtesy of SUBARU OF AMERICA, INC.
