Air Cleaner Element: Removal

  1. Remove the clip (A) from the air cleaner case (rear).

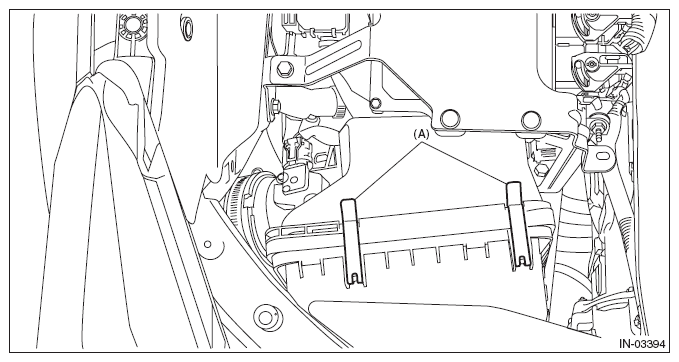

    Fig 1: Identifying Air Cleaner Case (Rear) And Clip
    G09480048Courtesy of SUBARU OF AMERICA, INC.
  2. Open the air cleaner case, and remove the air cleaner element.

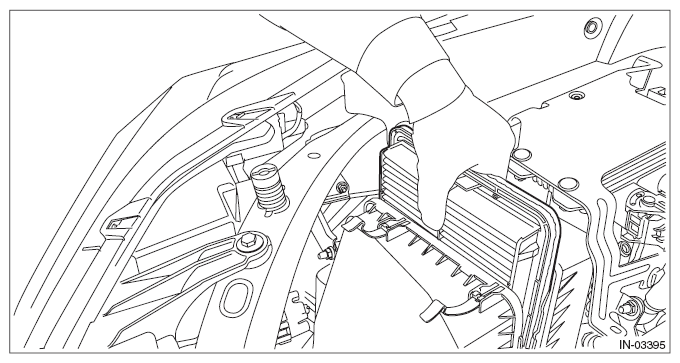

Fig 2: Removing Air Cleaner Element
G09480049Courtesy of SUBARU OF AMERICA, INC.
