Air By-pass Valve: Removal

  1. Remove the intake duct No. 1. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intake Duct>REMOVAL>INTAKE DUCT NO. 1 .
  2. Disconnect the vacuum hose from the air by-pass valve, and remove the air by-pass valve from the intake duct No. 2.

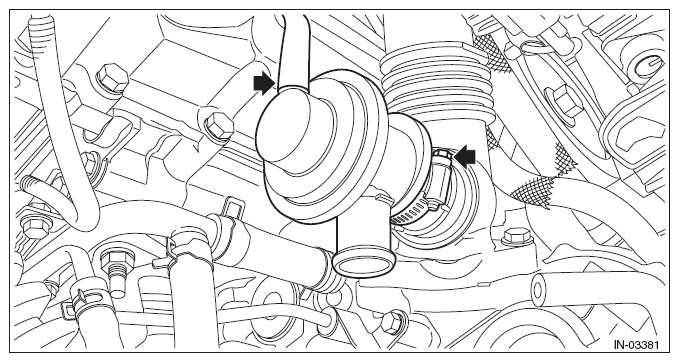

Fig 1: Locating Vacuum Hose From Air By-Pass Valve
G09480132Courtesy of SUBARU OF AMERICA, INC.
