Rear Exhaust Pipe: Installation

Apply a coat of spray type lubricant to the mating area of cushion rubber.
Install the rear exhaust pipe to cushion rubber.
NOTE: After assembling, degrease the lubricant which was applied to the cushion rubber while removing/installing.

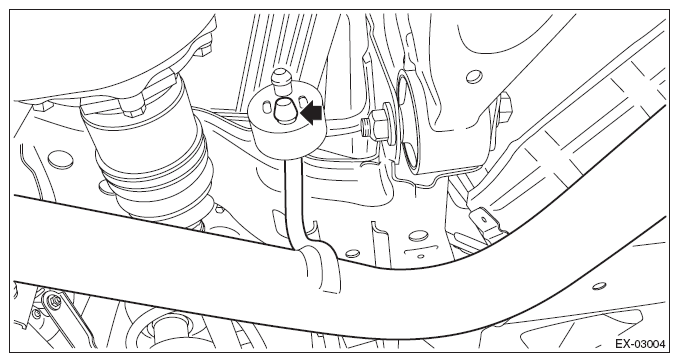

Fig 1: Locating Rear Exhaust Pipe Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Install the bolts and self-locking nuts which secure the muffler to the rear exhaust pipe.
NOTE: Use a new gasket and self-locking nut.

Tightening torque:

48 N.m (4.9 kgf-m, 35.4 ft-lb)

Fig 2: Locating Mufflers To Rear Exhaust Pipes Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the bolts, springs, and nuts which secure the center exhaust pipe (rear) to the rear exhaust pipe.
NOTE: Use a new gasket.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 3: Locating Rear Exhaust Pipe Bolt
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
