Exhaust System (H4DOTC): Muffler: Removal

CAUTION: Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.

1. Lift up the vehicle.
2. Remove the bolts and self-locking nuts which secure the rear exhaust pipe to the muffler.
   Fig 1: Locating Mufflers To Rear Exhaust Pipes Bolts

   Courtesy of SUBARU OF AMERICA, INC.
3. Apply a coat of spray type lubricant to the mating area of cushion rubber.
4. Remove the muffler from the cushion rubber.
   CAUTION: Be careful not to drop the muffler during removal.

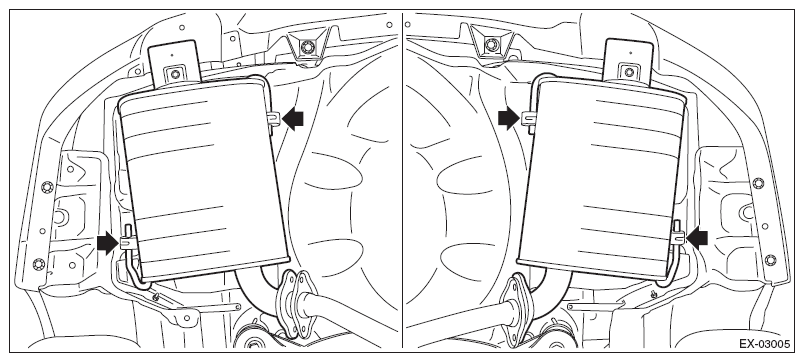

   Fig 2: Locating Muffler Cushion Rubber

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the cushion rubber and rear exhaust cover from the vehicle.

Fig 3: Locating Rear Exhaust Cover Bolts

Courtesy of SUBARU OF AMERICA, INC.
