Center Exhaust Pipe: Disassembly

  1. Remove the front oxygen (A/F) sensor and rear oxygen sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Front Oxygen (A/F) Sensor>REMOVAL . Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Rear Oxygen Sensor>REMOVAL .
  2. Remove the exhaust pipe cover from the center exhaust pipe (front) and center exhaust pipe (rear).

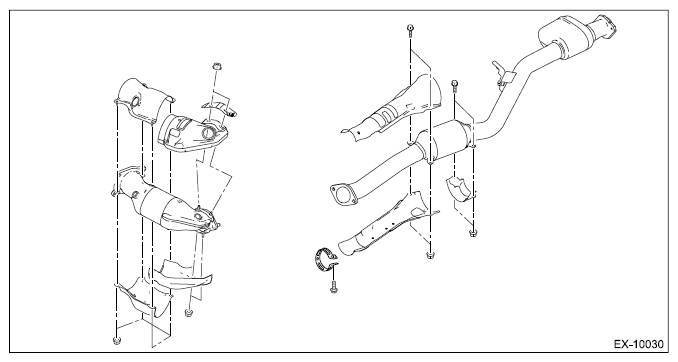

Fig 1: Exploded View Of Center Exhaust Pipe
G11267239Courtesy of SUBARU OF AMERICA, INC.
