Center Exhaust Pipe: Assembly

  1. Install the exhaust pipe cover to the center exhaust pipe (front) and center exhaust pipe (rear).

    Tightening torque:

    T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    T2: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

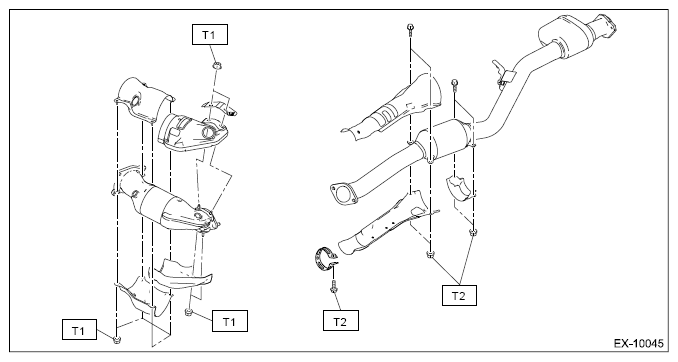

    Fig 1: Exploded View Of Center Exhaust Pipe With Torque Specification
    G11267240Courtesy of SUBARU OF AMERICA, INC.
  2. Install the front oxygen (A/F) sensor and rear oxygen sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Front Oxygen (A/F) Sensor>INSTALLATION . Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Rear Oxygen Sensor>INSTALLATION .
