Water Pump Pulley

  1. Using the ST, install the water pump pulley.

    ST1 18355AA000 PULLEY WRENCH

    ST2 18334AA030 PULLEY WRENCH PIN SET

    Tightening torque:

    14 N m (1.4 kgf-m, 10.3 ft-lb)

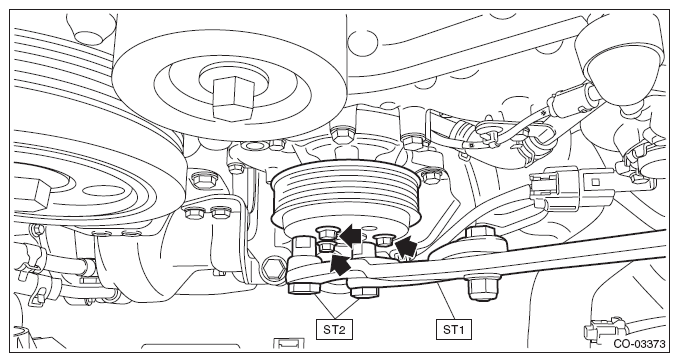

    Fig 1: Locating Water Pump Pulley Bolts
    G10267205Courtesy of SUBARU OF AMERICA, INC.
  2. Install the V-belts. Ref. to MECHANICAL(H4DOTC)>V-belt>INSTALLATION .
