Water Pipe Assembly RH

  1. Set the water pipe assembly RH on the engine, and connect the water pipe hose RH (B) to the oil pan upper.
  2. Install the bolt (A) which secures the water pipe assembly RH to the cylinder head RH.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

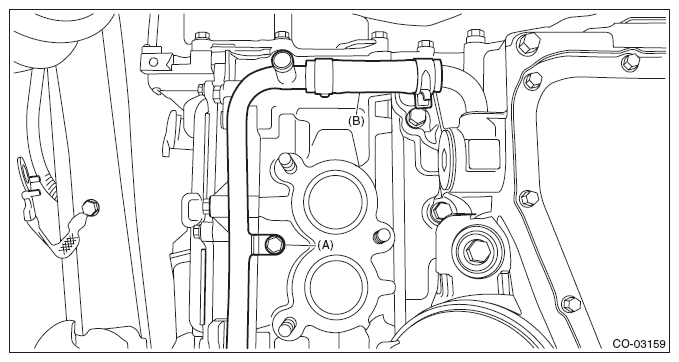

    Fig 1: Identifying Water Pipe Hose And Bolt
    G09480755Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the water hose (A) to the water pipe assembly RH, and install the bolt (B) which secures the water pipe assembly RH to the cam carrier RH.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    Fig 2: Identifying Water Hose And Bolt
    G09476398Courtesy of SUBARU OF AMERICA, INC.
  4. Install the front exhaust pipe. Ref. to EXHAUST(H4DOTC)>Front Exhaust Pipe>INSTALLATION .
  5. Install the oil pipe assembly. Ref. to LUBRICATION(H4DO)>Oil Pipe>INSTALLATION>OIL PIPE ASSEMBLY .
  6. Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERY .
  7. Fill engine coolant. Ref. to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
