Water Pipe Assembly LH

Set the water pipe assembly LH on the engine, and connect the water pipe hose LH (D) to the oil pan upper.
Connect the side engine oil cooler hose B (C) to the water pipe assembly LH.
Install the bolt (B) which secures the water pipe assembly LH to the cylinder head LH.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Install the rear oxygen sensor connector (A) to the water pipe assembly LH.

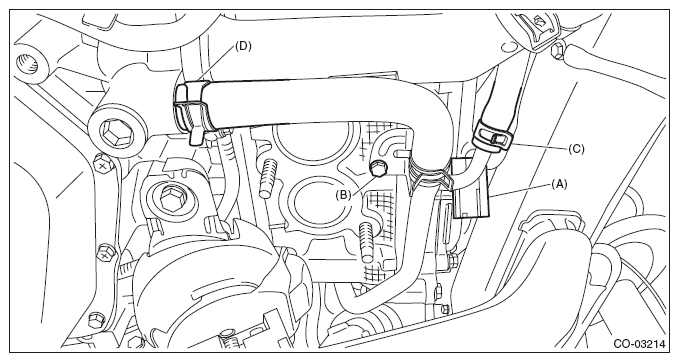

Fig 1: Identifying Water Pipe Assembly Components
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Support the engine with a lifting device and wire ropes.

Fig 2: Supporting Engine With Lifting Device
Courtesy of SUBARU OF AMERICA, INC.
Lift the engine, and remove the ST.
CAUTION: When lifting up the engine, pay attention to the clearance of each part and be careful not to lift the engine too much, in order to prevent damaging the vehicle.

ST 18632AA020 STAND ASSY

Fig 3: Removing ST Between Engine Mount And Front Crossmember
Courtesy of SUBARU OF AMERICA, INC.
Lower the engine and remove the lifting device and wire ropes.

Fig 4: Removing Lifting Device
Courtesy of SUBARU OF AMERICA, INC.
Install the bolt which secures the transmission harness stay to the CVT.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

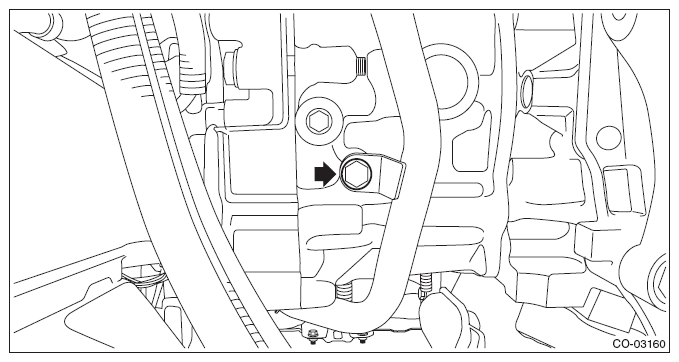

Fig 5: Locating Transmission Harness Stay Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the pitching stopper.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Fig 6: Locating Pitching Stopper Nut And Bolt
Courtesy of SUBARU OF AMERICA, INC.
Connect the preheater hose (A) and the heater outlet hose (B) to the water pipe assembly LH.

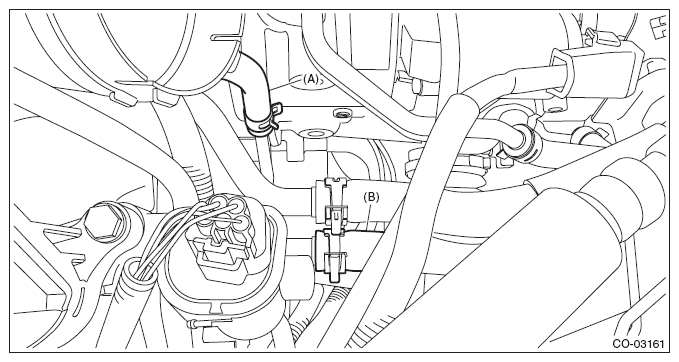

Fig 7: Identifying Preheater Hose And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the bolt which secures the water pipe assembly LH to the cylinder head LH.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 8: Locating Water Pipe Assembly Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>INSTALLATION .
Lift up the vehicle.
Install the nuts which hold the engine mounting to the front crossmember.
NOTE:
- Make sure that locators (a) of the engine mounting are securely inserted.
- Use a new nut.
Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

Fig 9: Locating Engine Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Ref. to EXHAUST(H4DOTC)>Front Exhaust Pipe>INSTALLATION .
Install the air intake duct (rear). Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>INSTALLATION .
Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERY .
Fill engine coolant. Ref. to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
Install the collector cover.
Change the installation position of the front hood damper from (B) to (A).
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

Fig 10: Changing Front Hood Damper Mounting Position From (A) To (B)
Courtesy of SUBARU OF AMERICA, INC.
Align the alignment marks (A), and install the front hood striker to the front hood.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 11: Aligning Alignment Marks On Front Hood Striker To Front Hood
Courtesy of SUBARU OF AMERICA, INC.
Install the bracket - grille UPR, and the grille assembly - front CTR. Ref. to EXTERIOR/INTERIOR TRIM>Front Grille>INSTALLATION .
