Radiator Fan System: Wiring Diagram

Radiator fan system Ref. to WIRING SYSTEM>Radiator Fan System>WIRING DIAGRAM .

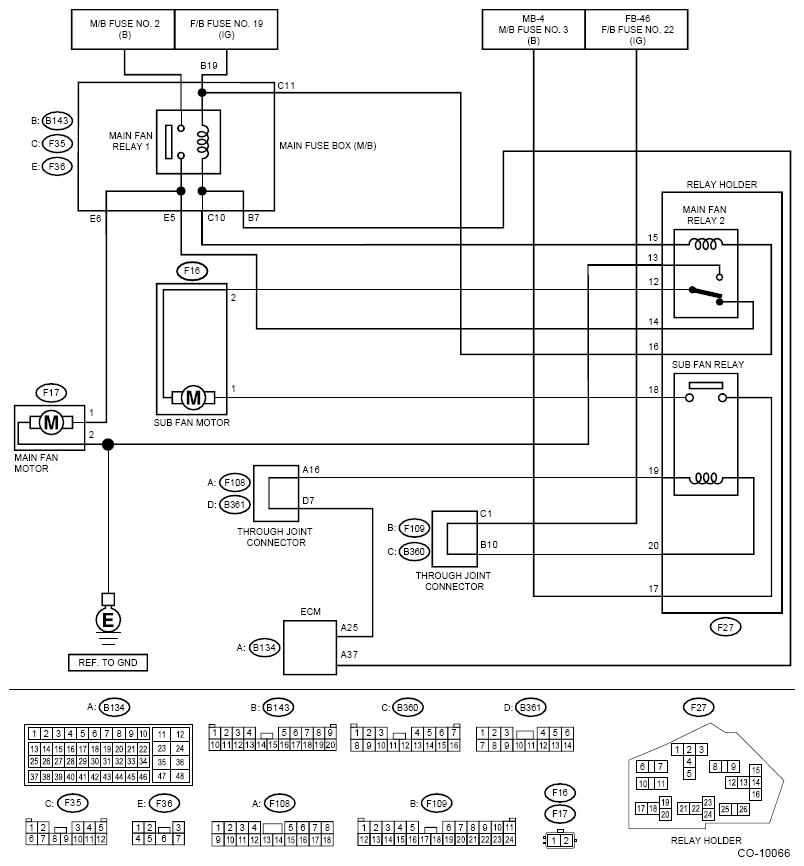

Fig 1: Radiator Fan System Wiring Diagram And Connector End View
G11267259Courtesy of SUBARU OF AMERICA, INC.
