Purge Control Solenoid Valve 1

Install in the reverse order of removal.

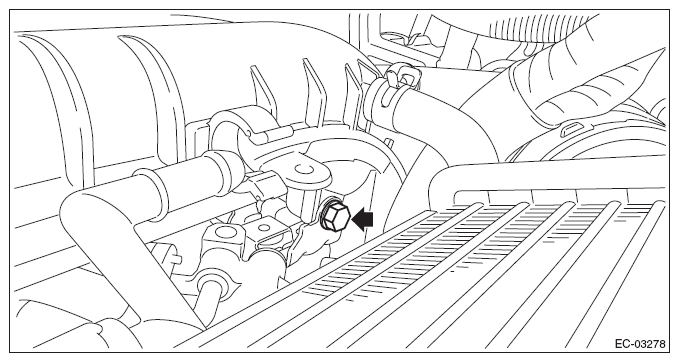

Fig 1: Connecting Vacuum Hose

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

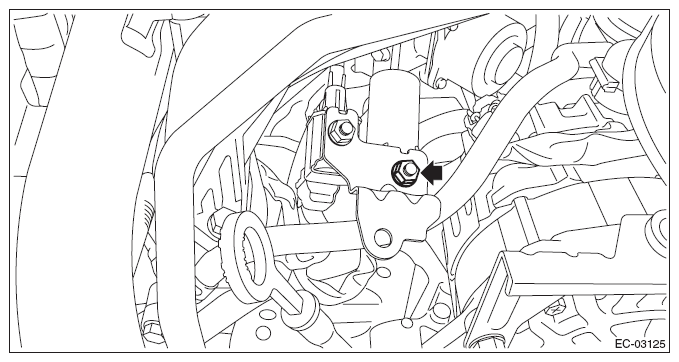

Fig 2: Locating Solenoid Valve Bracket Nut

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 3: Locating Solenoid Valve Bracket From Intake Manifold With Bolt

Courtesy of SUBARU OF AMERICA, INC.
