PCV Hose: Removal

Remove the collector cover.
1. Remove the clip (A).
2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
Fig 1: Removing Collector Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery.
Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
Remove the brake booster vacuum hose from the clip, and place the brake booster vacuum hose aside so that it does not interfere with the work.

Fig 2: Locating Brake Booster Vacuum Hose From Clip
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the PCV hose from the intake manifold, and remove the PCV hose from the PCV valve.

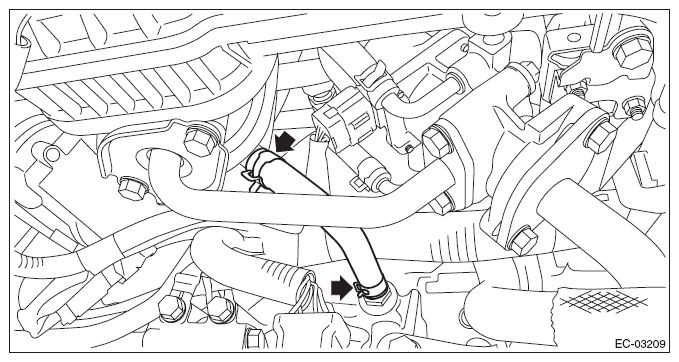

Fig 3: Locating PCV Hose From Intake Manifold With Clips

Courtesy of SUBARU OF AMERICA, INC.
