PCV Connector: Removal

  1. Remove the collector cover.
    1. Remove the clip (A).
    2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
    3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
    Fig 1: Removing Collector Cover
    G10403792Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Drain engine coolant. Ref. to COOLING(H4DOTC)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  4. Remove the PCV pipe assembly. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>PCV Pipe>REMOVAL .
  5. Disconnect the preheater hose from the PCV connector, and remove the PCV connector from the cylinder block LH.

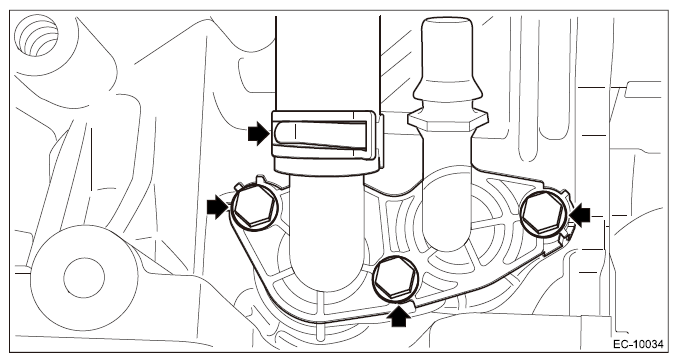

Fig 2: Locating Preheater Hose From PCV Connector With Clip And Bolts
G11266556Courtesy of SUBARU OF AMERICA, INC.
