Leak Check Valve Assembly: Assembly

Install the bracket to the leak check valve assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

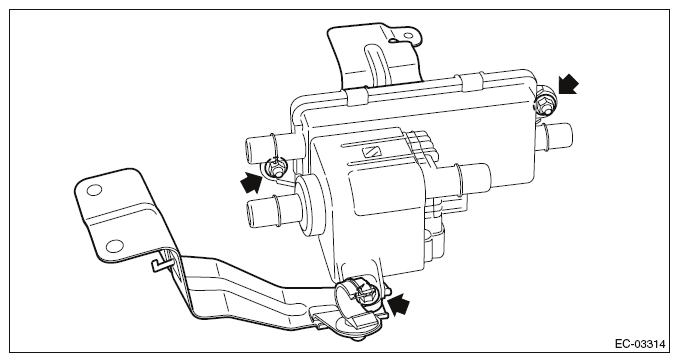

Fig 1: Locating Bracket To Leak Check Valve Assembly With Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the drain tube to the leak check valve assembly.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.
NOTE: Connect the quick connector as shown in the figure.

Fig 2: Connecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

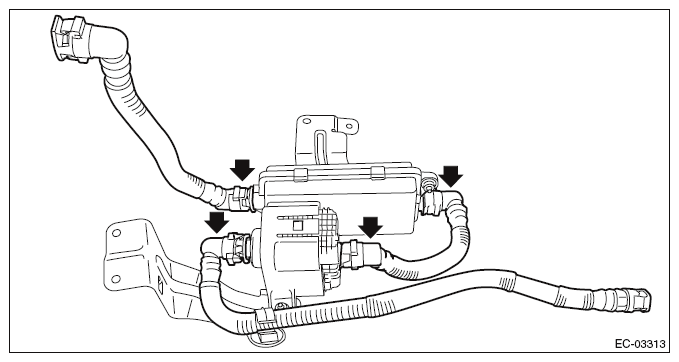

Fig 3: Locating Drain Tube To Leak Check Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
