EGR Pipe: Installation

Install the EGR pipe to the intake manifold and EGR control valve.
1. Set the EGR pipe to the intake manifold and EGR control valve, and temporarily tighten the bolts which secure the EGR pipe to the intake manifold and EGR control valve.
  NOTE: Use new gaskets and O-rings.

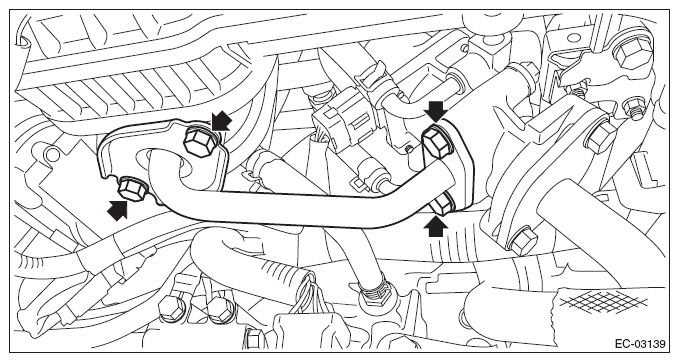

  Fig 1: Locating EGR Pipe Bolts
  Courtesy of SUBARU OF AMERICA, INC.
2. Tighten the bolts which secure the EGR pipe to the intake manifold and EGR control valve in numerical order as shown in the figure.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

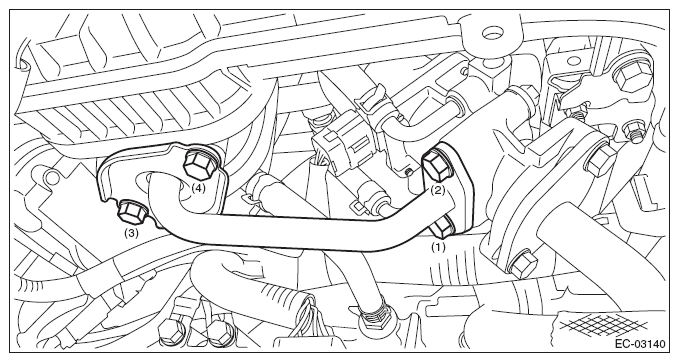

Fig 2: EGR Pipe Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the brake booster vacuum hose to the clip.
NOTE: If the clip is removed from the intake manifold, install the clip to the position of alignment mark of intake manifold.

Fig 3: Locating Brake Booster Vacuum Hose To Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>INSTALLATION .
Connect the battery ground terminal.
Install the collector cover.
