Vehicle Dynamics Control System
>>
Wiring Diagram
>>
Non-Turbo Model
Non-Turbo Model

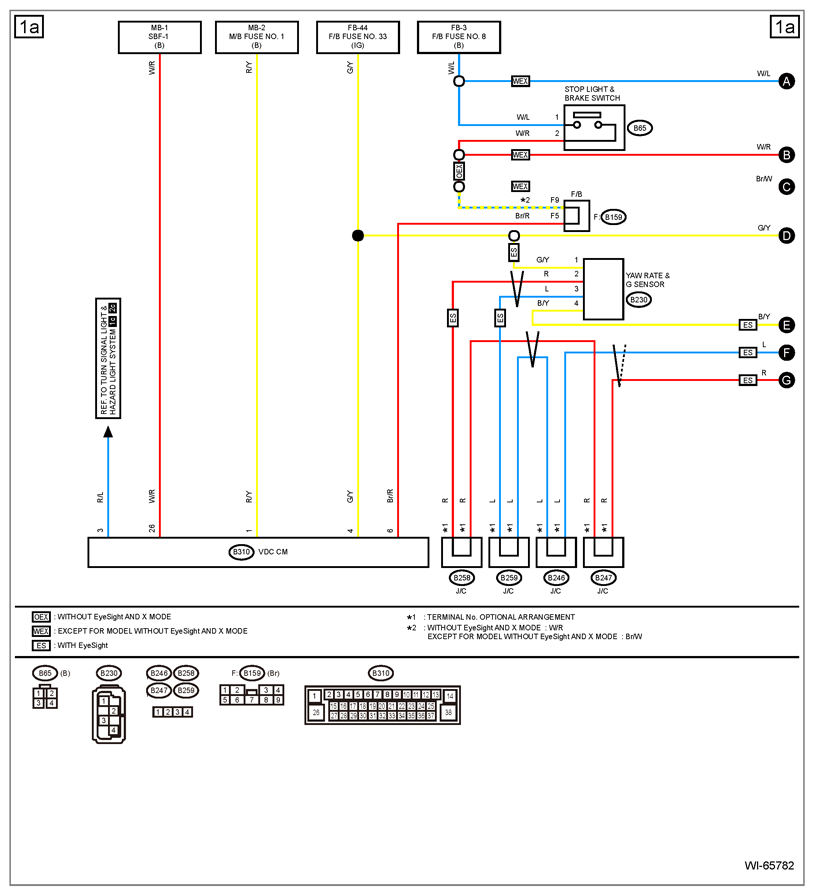

Fig 1: Non-Turbo Model Vehicle Dynamics Control System Wiring Diagram (1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

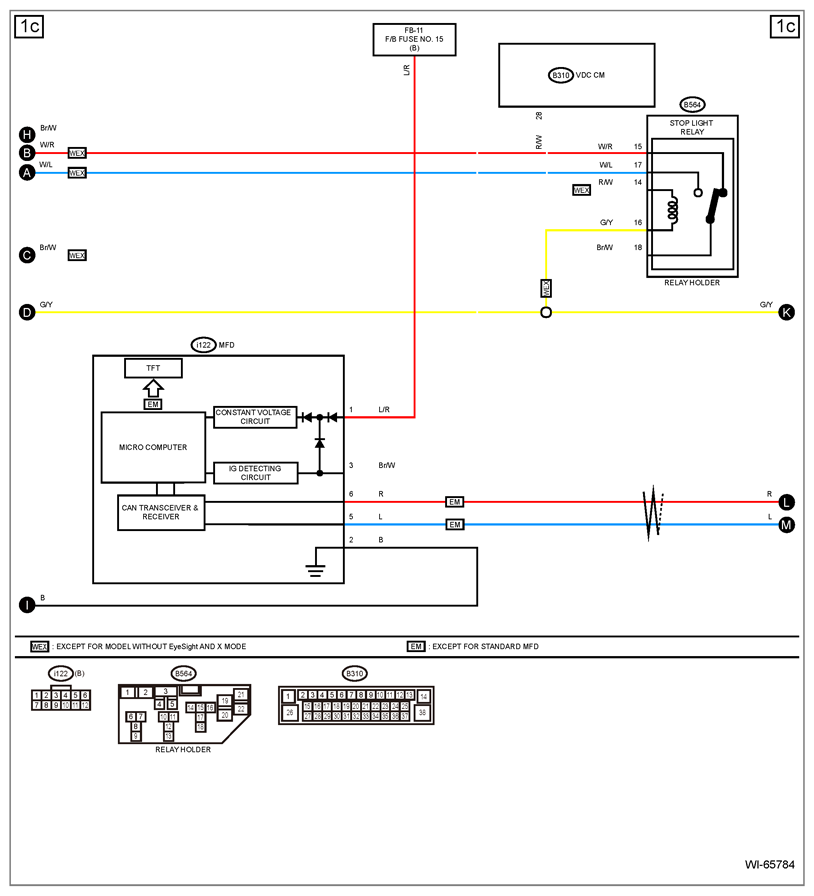

Fig 2: Non-Turbo Model Vehicle Dynamics Control System Wiring Diagram (2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Non-Turbo Model Vehicle Dynamics Control System Wiring Diagram (3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

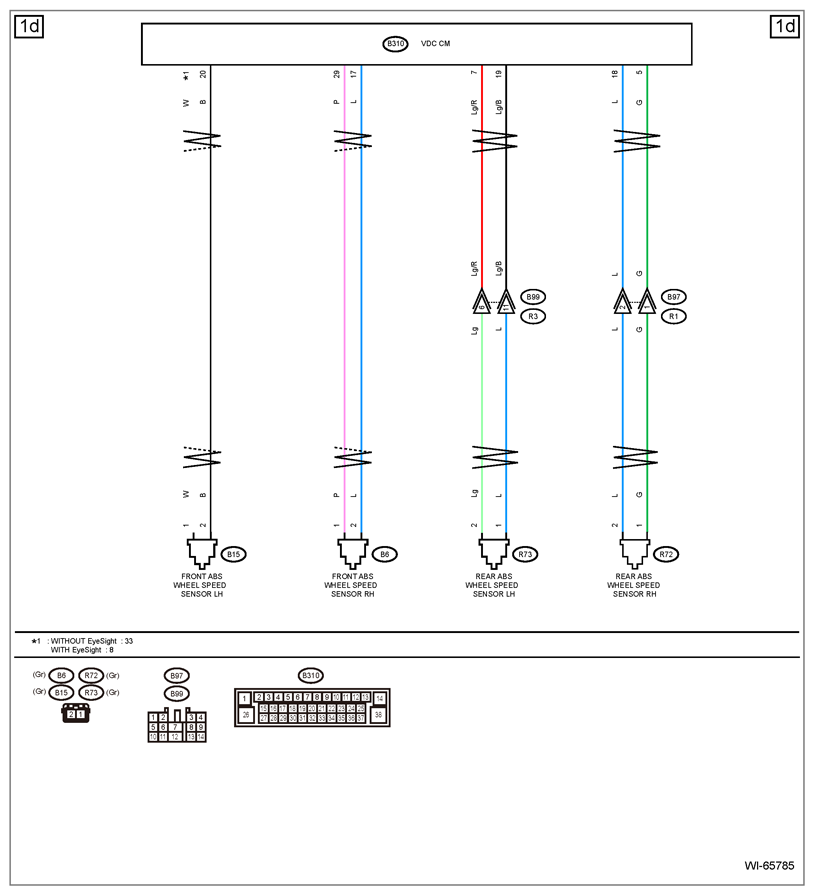

Fig 4: Non-Turbo Model Vehicle Dynamics Control System Wiring Diagram (4 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

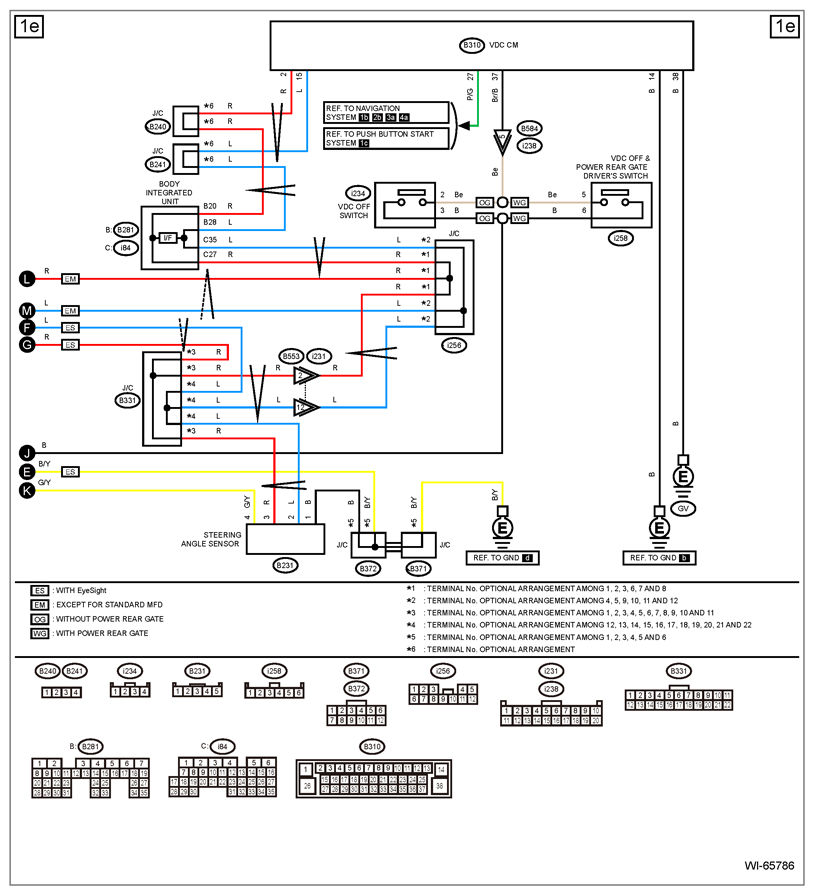

Fig 5: Non-Turbo Model Vehicle Dynamics Control System Wiring Diagram (5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
