Vacuum Pump Control System: Wiring Diagram

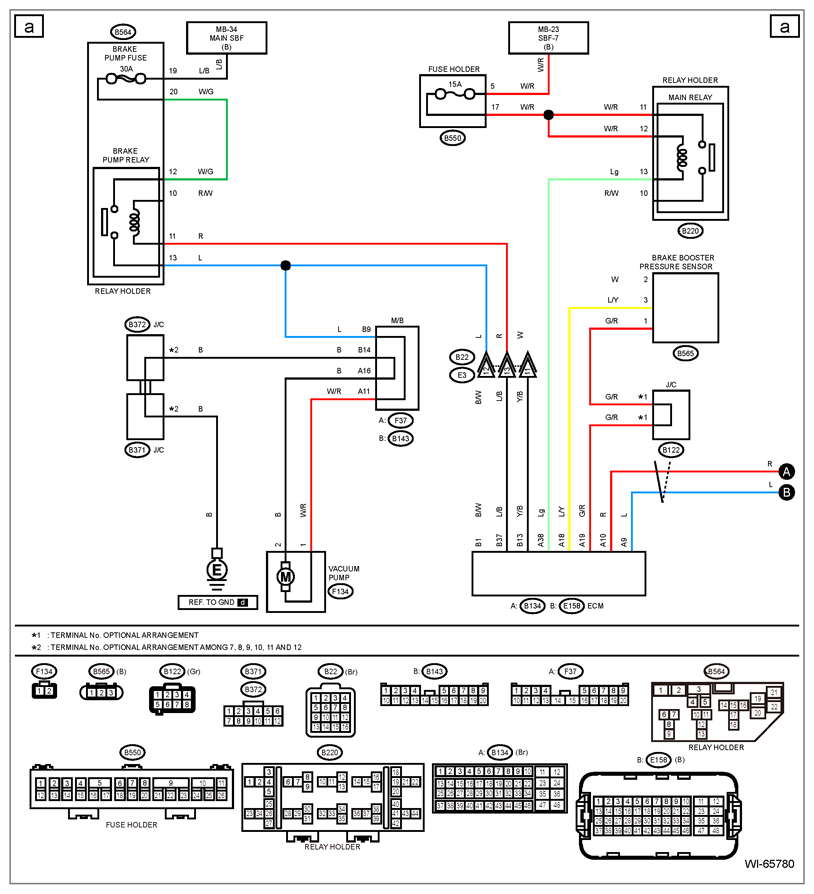

Fig 1: Vacuum Pump Control System Wiring Diagram (1 Of 2)
G11272564Courtesy of SUBARU OF AMERICA, INC.

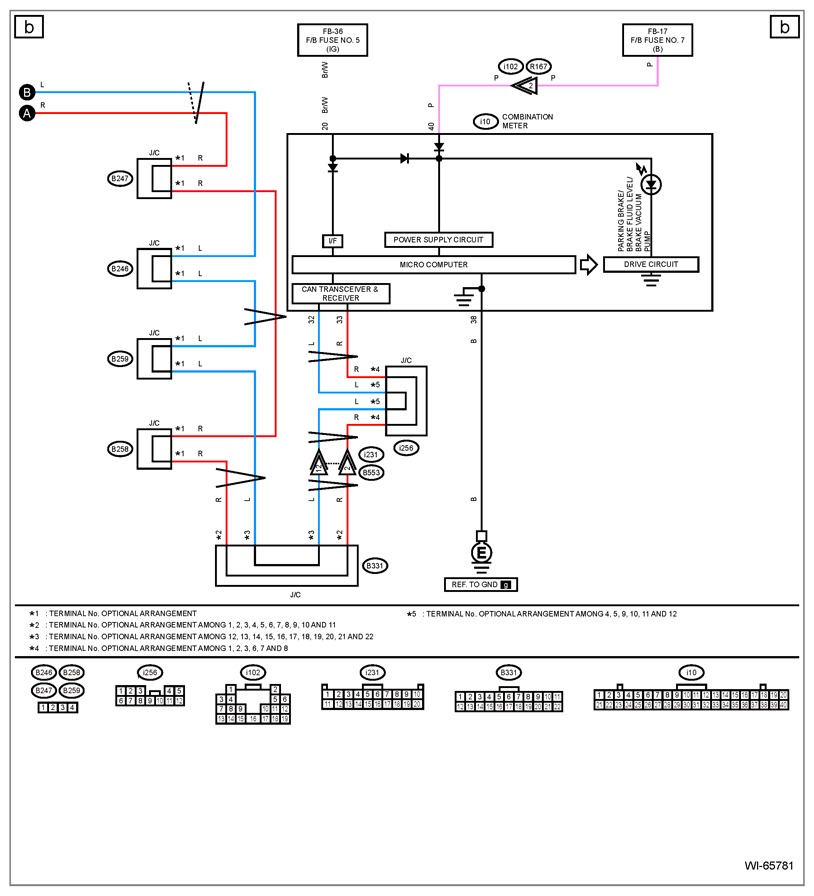

Fig 2: Vacuum Pump Control System Wiring Diagram (2 Of 2)
G11272565Courtesy of SUBARU OF AMERICA, INC.
