Front Combination Light Led Model

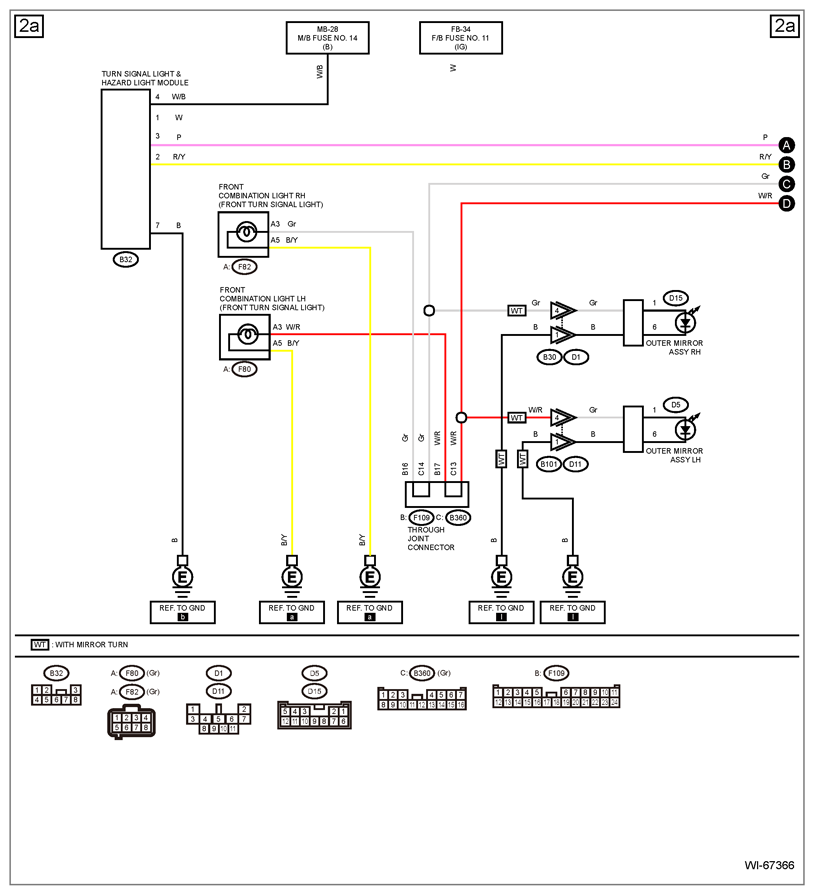

Fig 1: Front Combination LED Model Turn Signal And Hazard Light System Wiring Diagram (1 Of 3)
G11272561Courtesy of SUBARU OF AMERICA, INC.

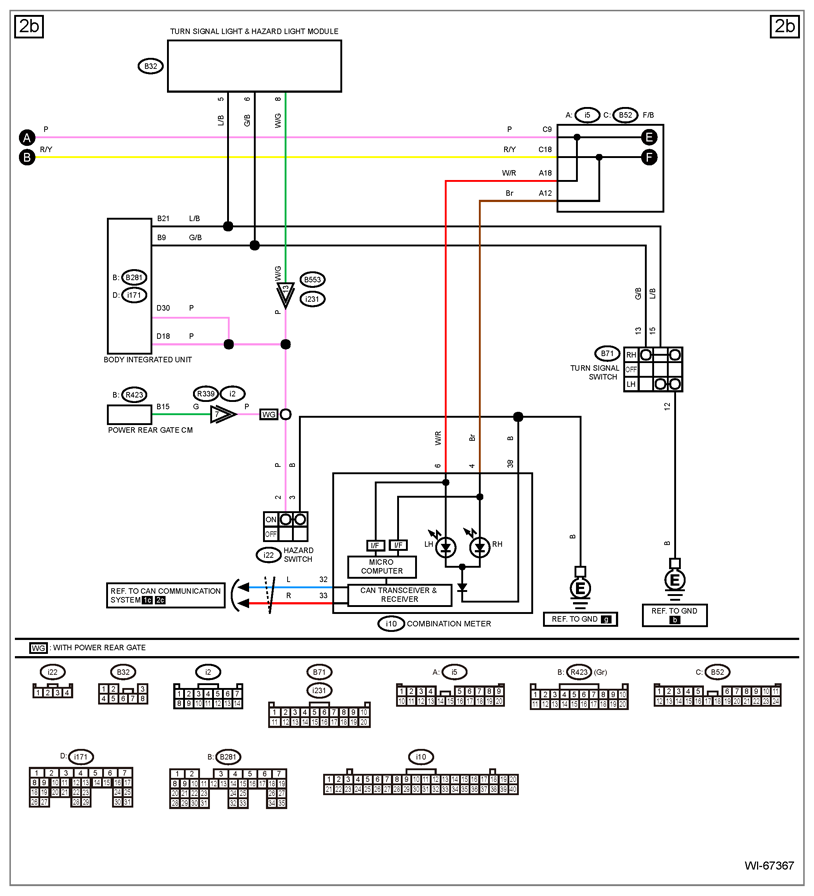

Fig 2: Front Combination LED Model Turn Signal And Hazard Light System Wiring Diagram (2 Of 3)
G11272562Courtesy of SUBARU OF AMERICA, INC.

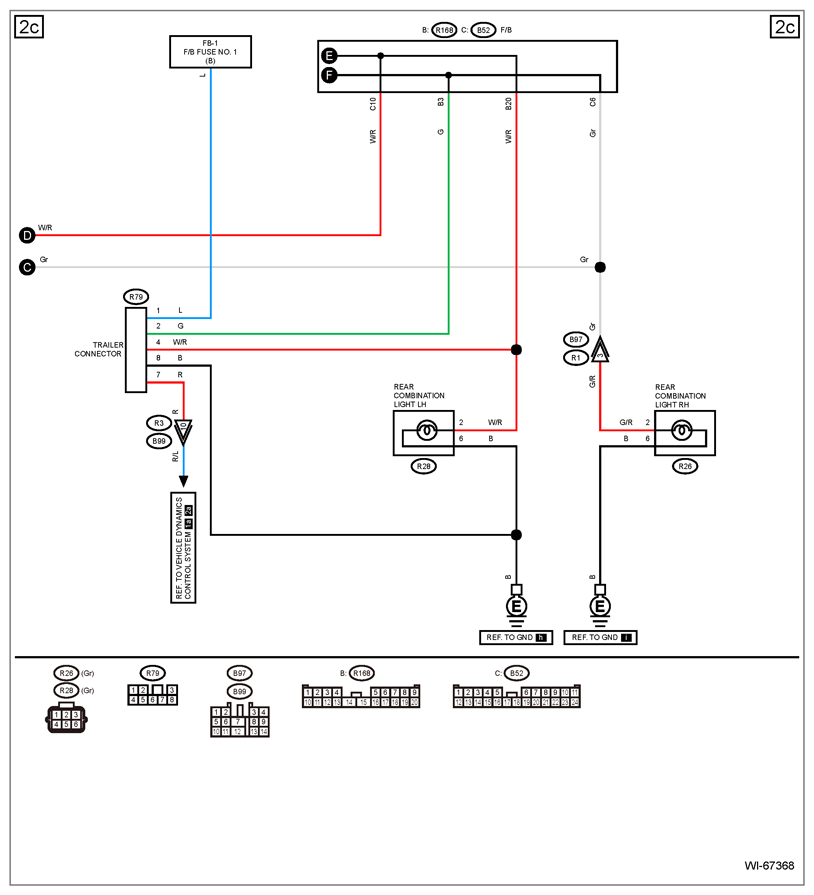

Fig 3: Front Combination LED Model Turn Signal And Hazard Light System Wiring Diagram (3 Of 3)
G11272563Courtesy of SUBARU OF AMERICA, INC.
