Sunroof Control System: Wiring Diagram

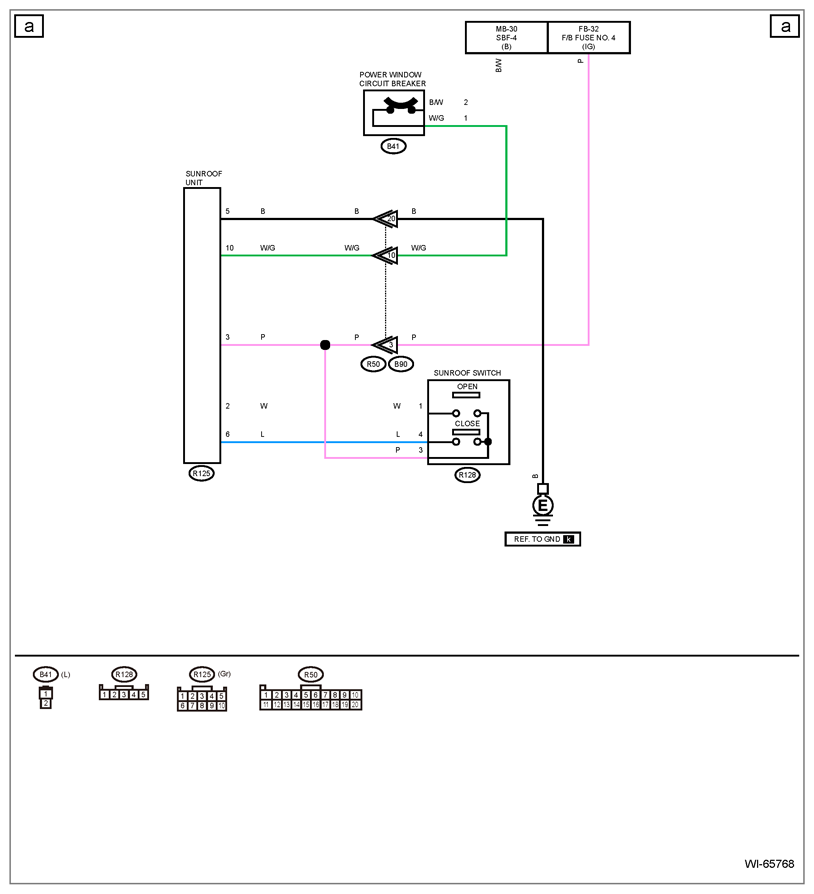

Fig 1: Sunroof Control System Wiring Diagram

G11272549

Courtesy of SUBARU OF AMERICA, INC.
