Subaru
>>
2017
>>
Forester 2.0XT Touring
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Stop Light System
>>
Wiring Diagram
>>
WITHOUT EyeSight AND X MODE
WITHOUT EyeSight AND X MODE

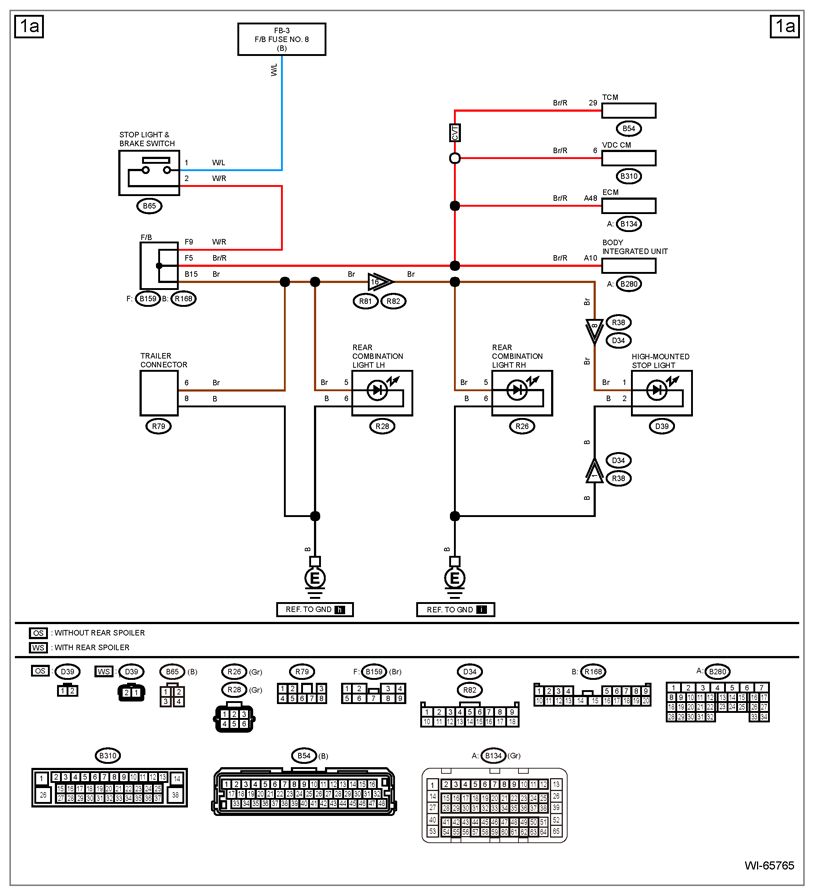

Fig 1: Stop Light System Wiring Diagram (Without Eyesight And X Mode)
Courtesy of SUBARU OF AMERICA, INC.
