EXCEPT FOR MODEL WITHOUT EyeSight AND X MODE

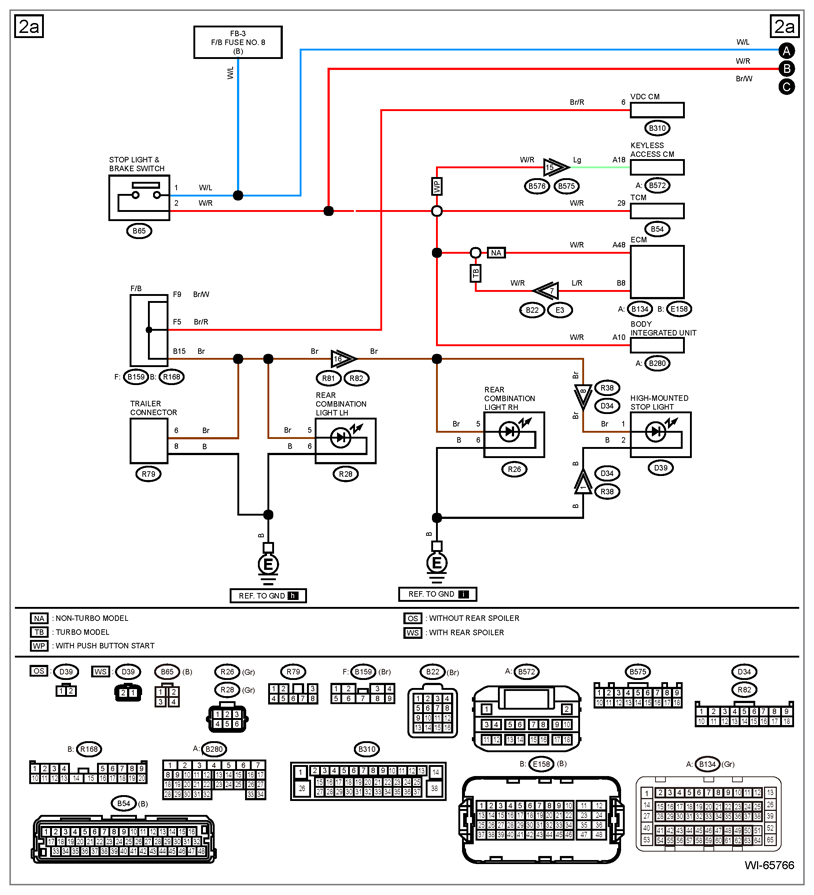

Fig 1: With Eyesight And X Mode Stop Light System Wiring Diagram (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

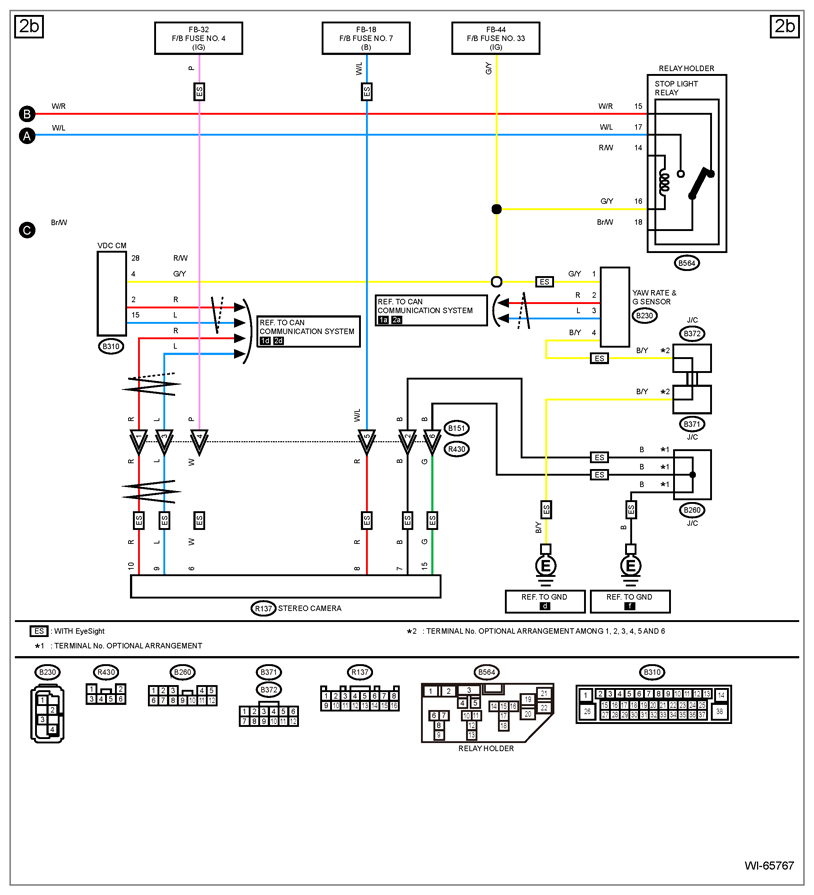

Fig 2: With Eyesight And X Mode Stop Light System Wiring Diagram (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
