Steering Heater System: Wiring Diagram

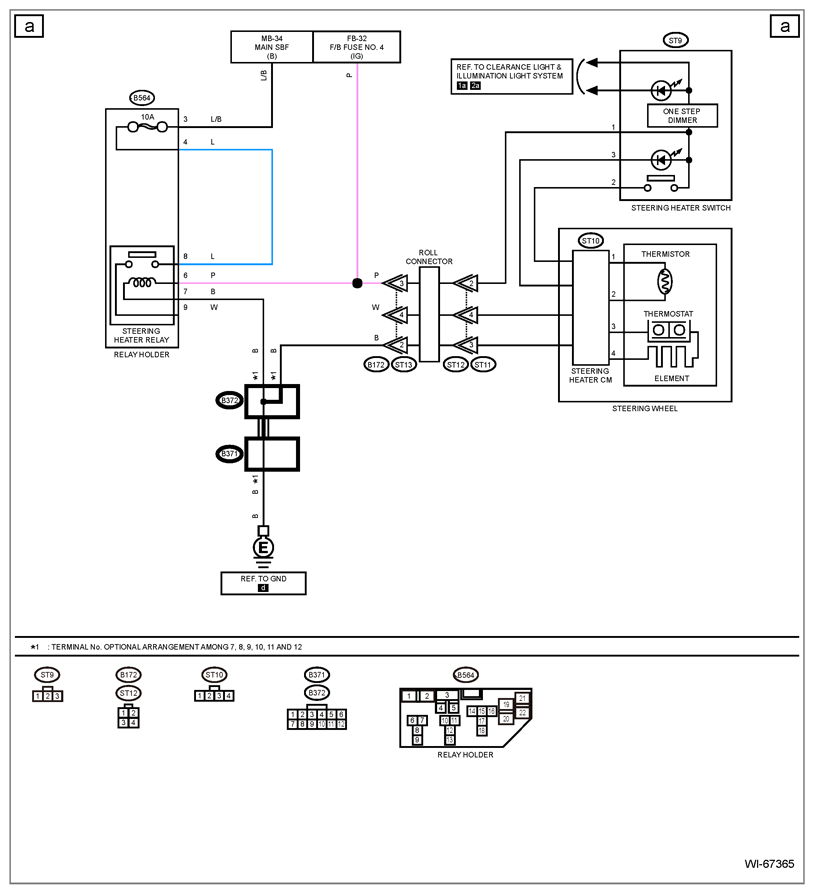

Fig 1: Steering Heater System Wiring Diagram

G11272545

Courtesy of SUBARU OF AMERICA, INC.
