Without Push Button Start

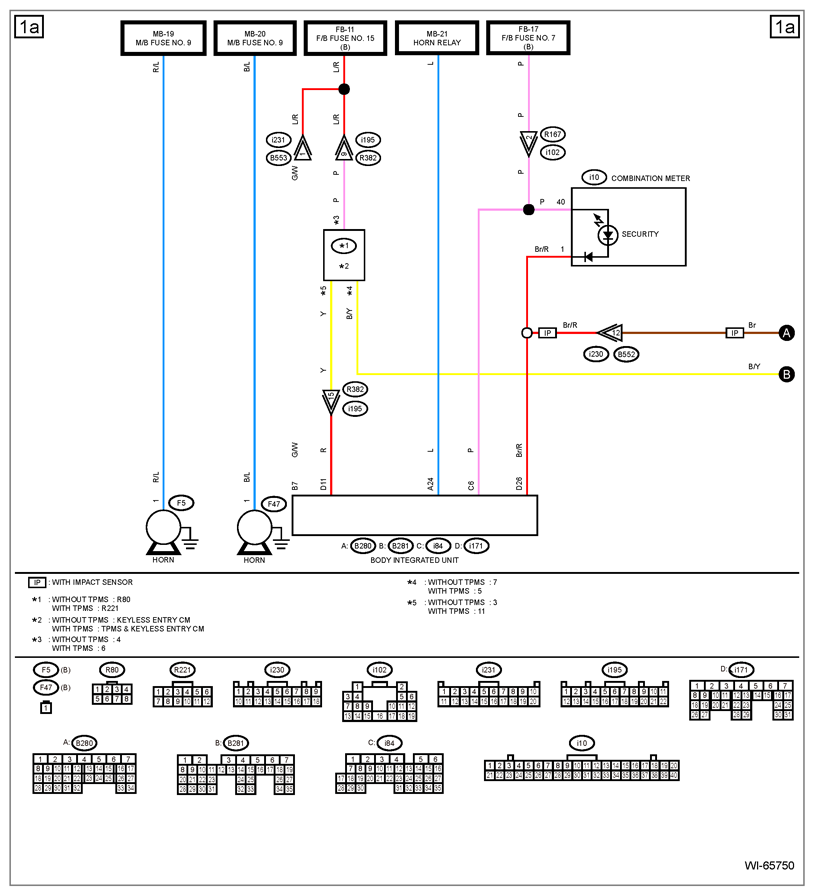

Fig 1: Without Push Button Start Security System Wiring Diagram (1 Of 4)
G11272530Courtesy of SUBARU OF AMERICA, INC.

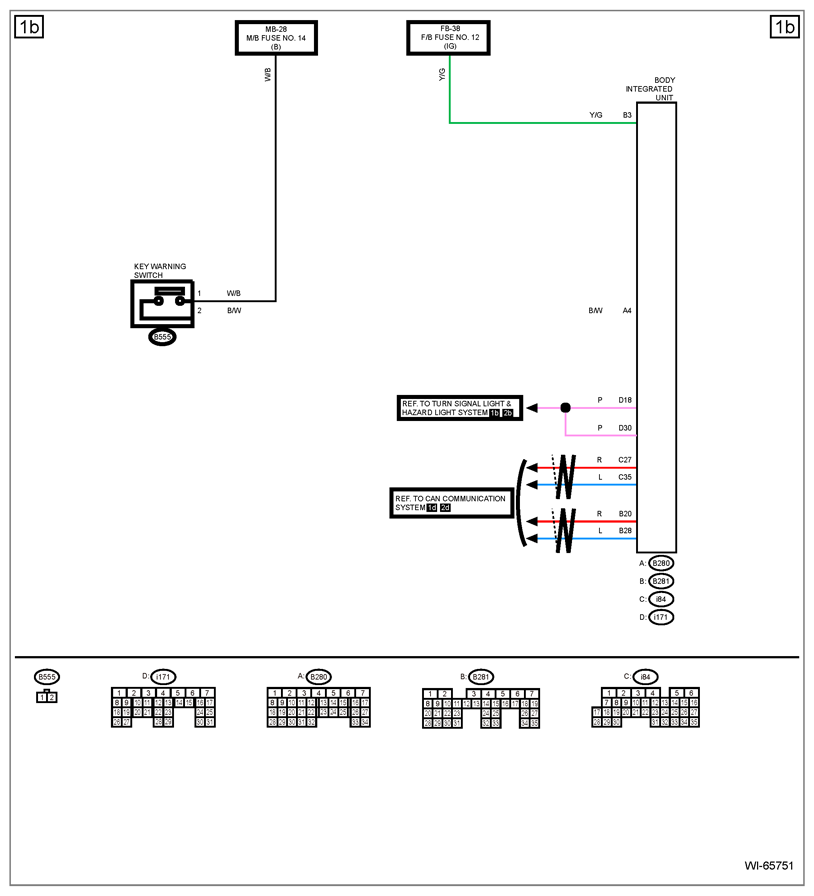

Fig 2: Without Push Button Start Security System Wiring Diagram (2 Of 4)
G11272531Courtesy of SUBARU OF AMERICA, INC.

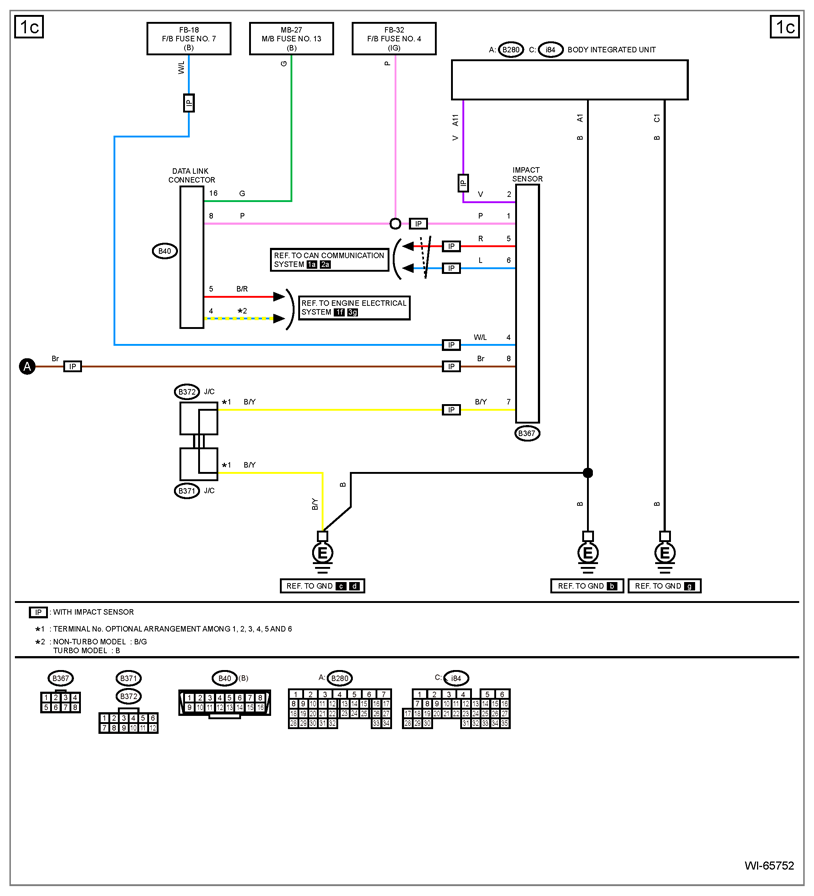

Fig 3: Without Push Button Start Security System Wiring Diagram (3 Of 4)
G11272532Courtesy of SUBARU OF AMERICA, INC.

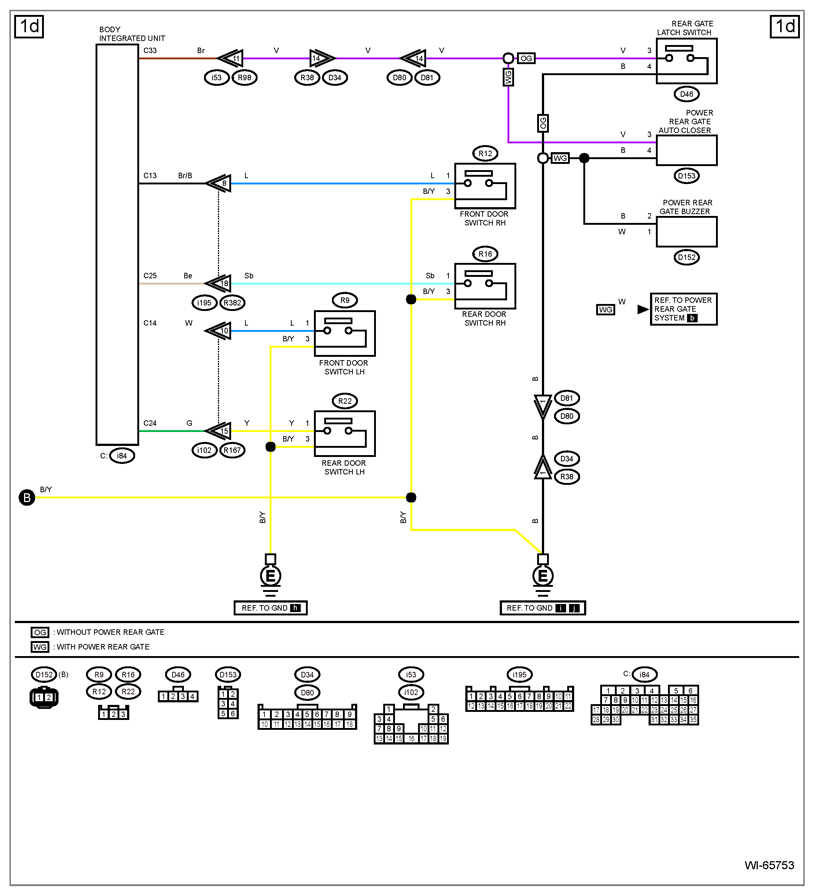

Fig 4: Without Push Button Start Security System Wiring Diagram (4 Of 4)
G11272533Courtesy of SUBARU OF AMERICA, INC.
