Home >> Subaru >> 2017 >> Forester 2.0XT Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations >> Remote Engine Start System >> Wiring Diagram >> Turbo Model

Turbo Model

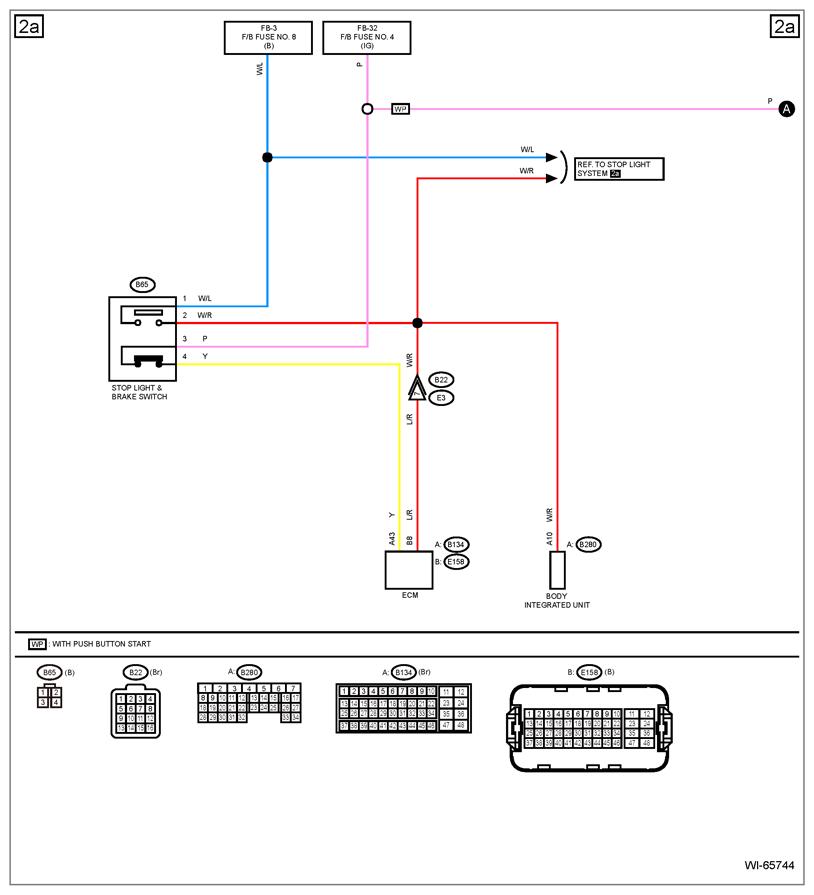

Fig 1: Turbo Model Remote Engine Start System Wiring Diagram (1 Of 3)
G11272520Courtesy of SUBARU OF AMERICA, INC.

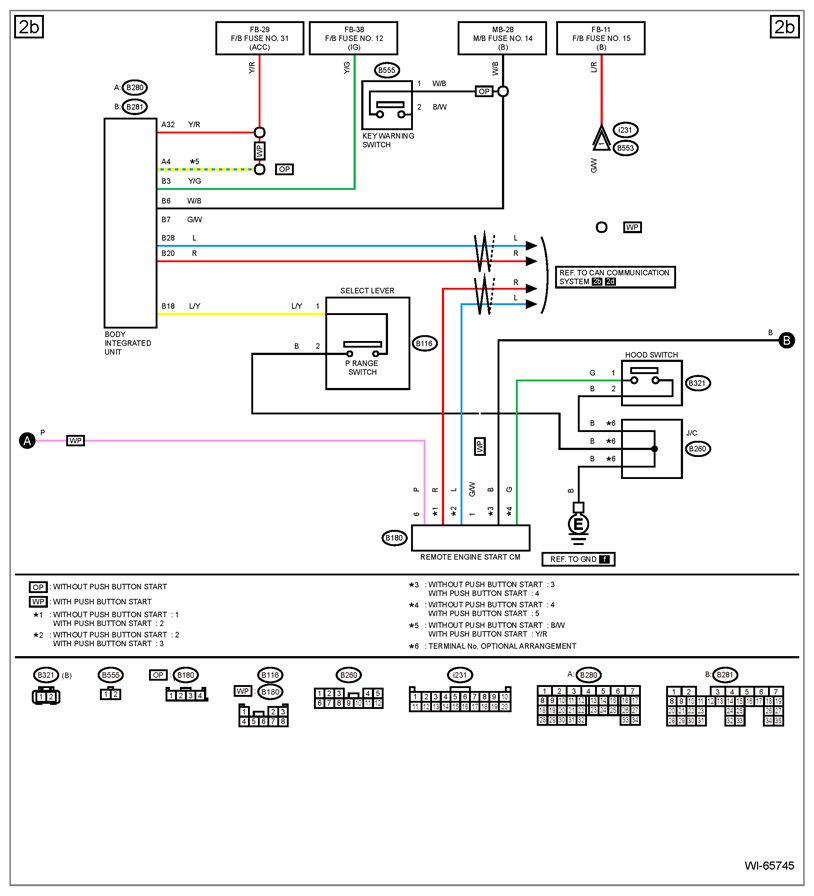

Fig 2: Turbo Model Remote Engine Start System Wiring Diagram (2 Of 3)
G11272521Courtesy of SUBARU OF AMERICA, INC.

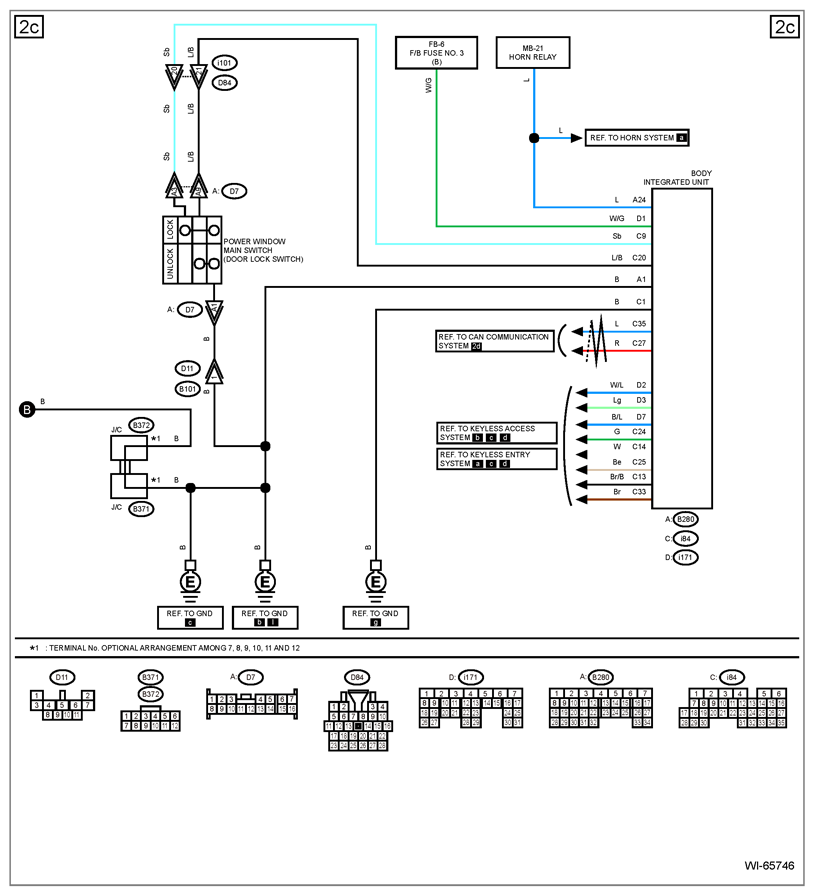

Fig 3: Turbo Model Remote Engine Start System Wiring Diagram (3 Of 3)
G11272522Courtesy of SUBARU OF AMERICA, INC.
