Non-Turbo Model

Fig 1: Non-Turbo Model Remote Engine Start System Wiring Diagram (1 Of 3)
G11272517Courtesy of SUBARU OF AMERICA, INC.

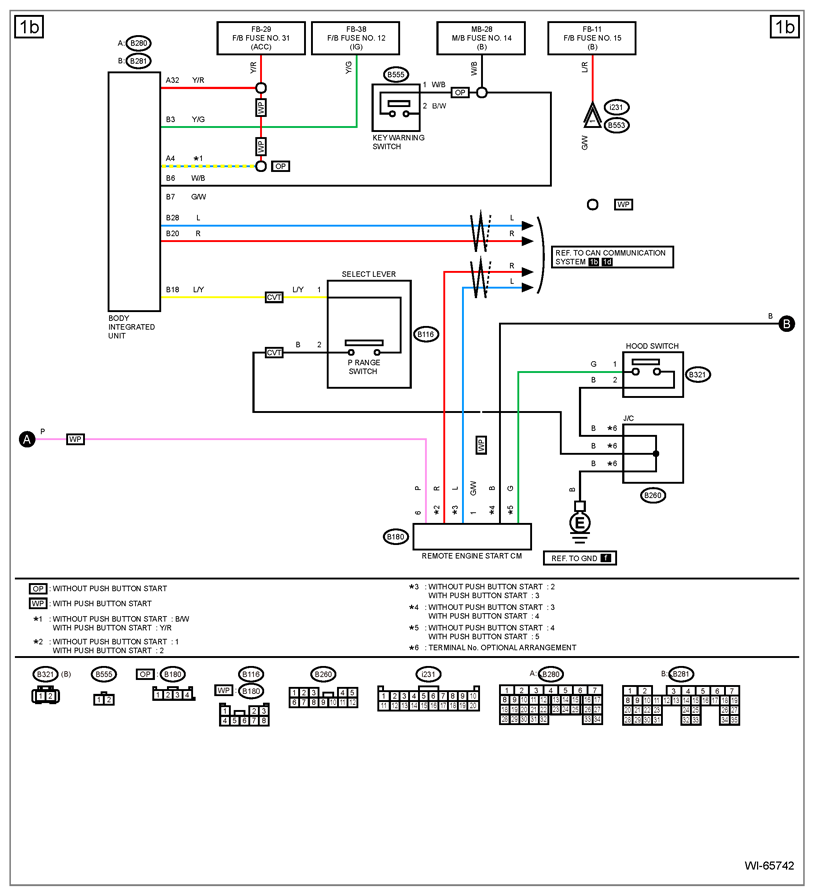

Fig 2: Non-Turbo Model Remote Engine Start System Wiring Diagram (2 Of 3)
G11272518Courtesy of SUBARU OF AMERICA, INC.

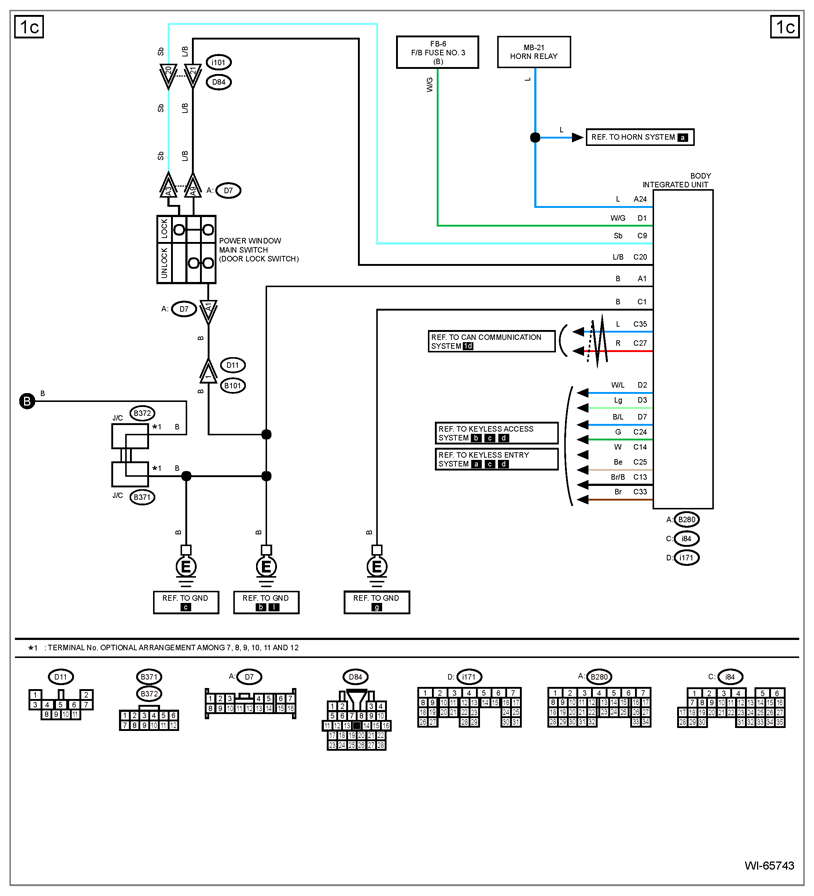

Fig 3: Non-Turbo Model Remote Engine Start System Wiring Diagram (3 Of 3)
G11272519Courtesy of SUBARU OF AMERICA, INC.
