Remote Control Mirror System: Wiring Diagram

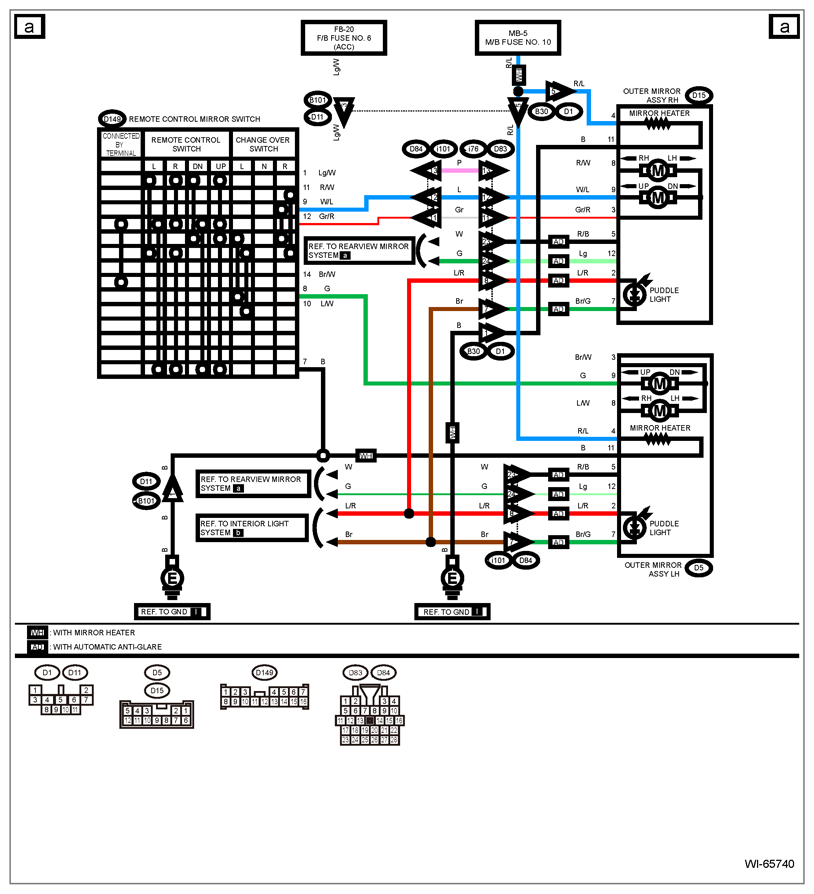

Fig 1: Remote Control Mirror System Wiring Diagram

G11272516

Courtesy of SUBARU OF AMERICA, INC.
