Rearview Mirror System: Wiring Diagram

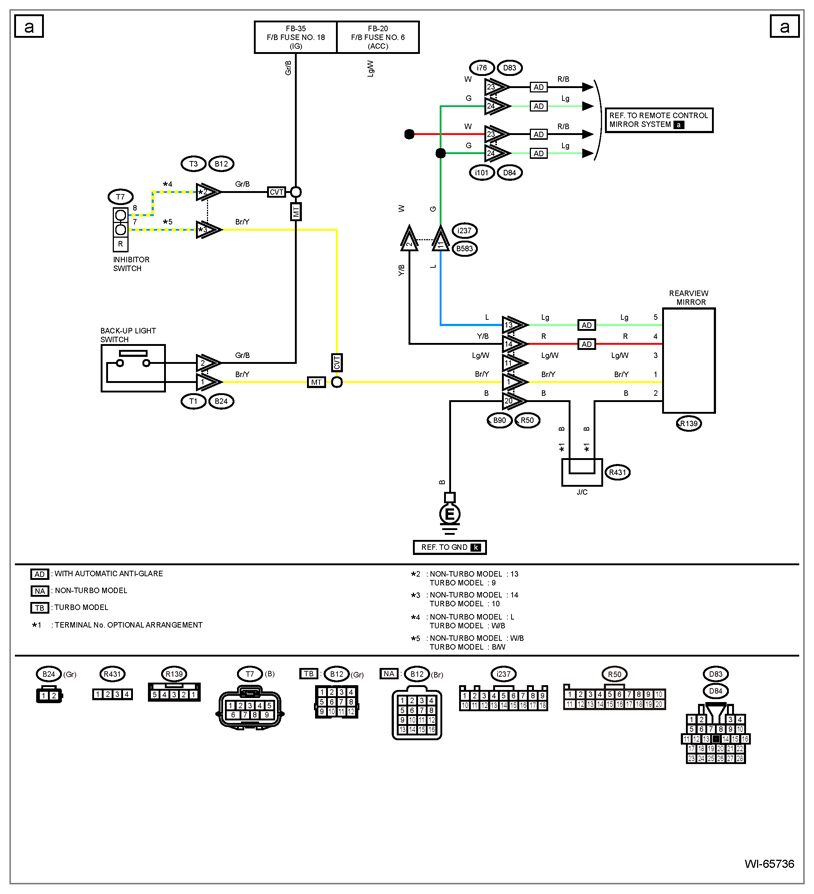

Fig 1: Rearview Mirror System Wiring Diagram

G11272512

Courtesy of SUBARU OF AMERICA, INC.
