Push Button Start System
>>
Wiring Diagram
>>
Turbo Model
Turbo Model

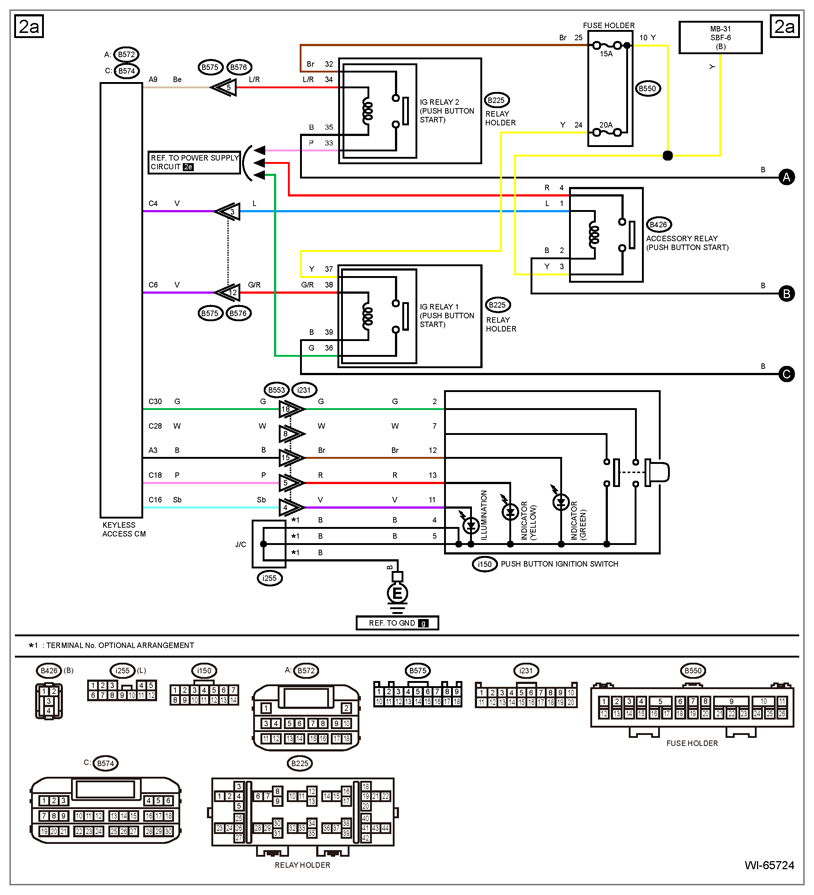

Fig 1: Turbo Model Push Button Start System Wiring Diagram (1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

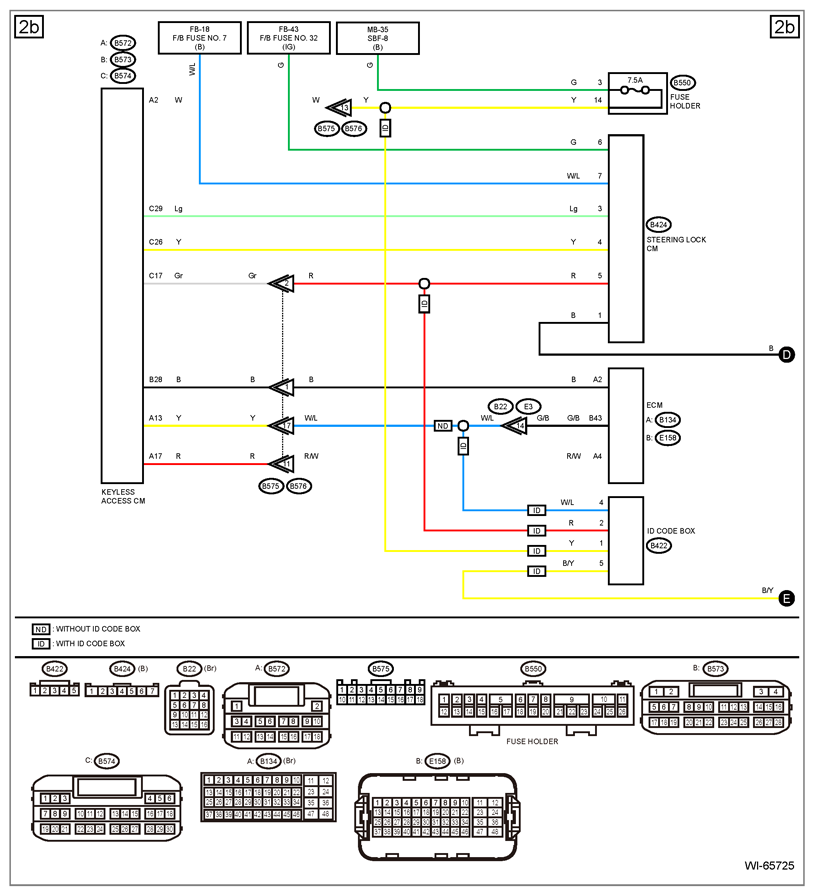

Fig 2: Turbo Model Push Button Start System Wiring Diagram (2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

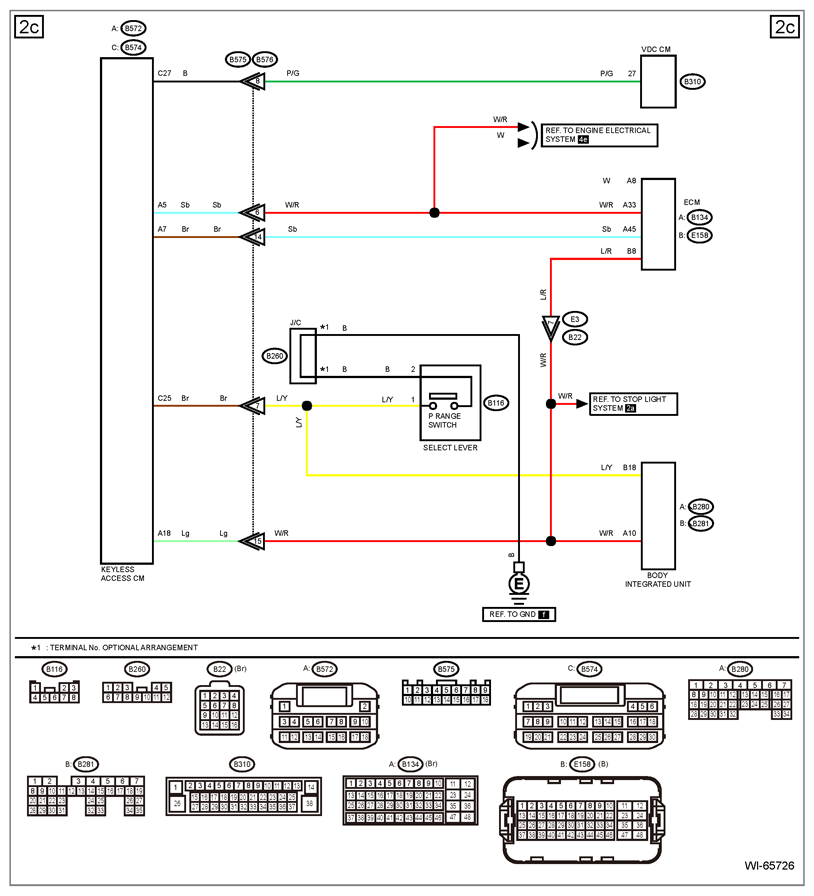

Fig 3: Turbo Model Push Button Start System Wiring Diagram (3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

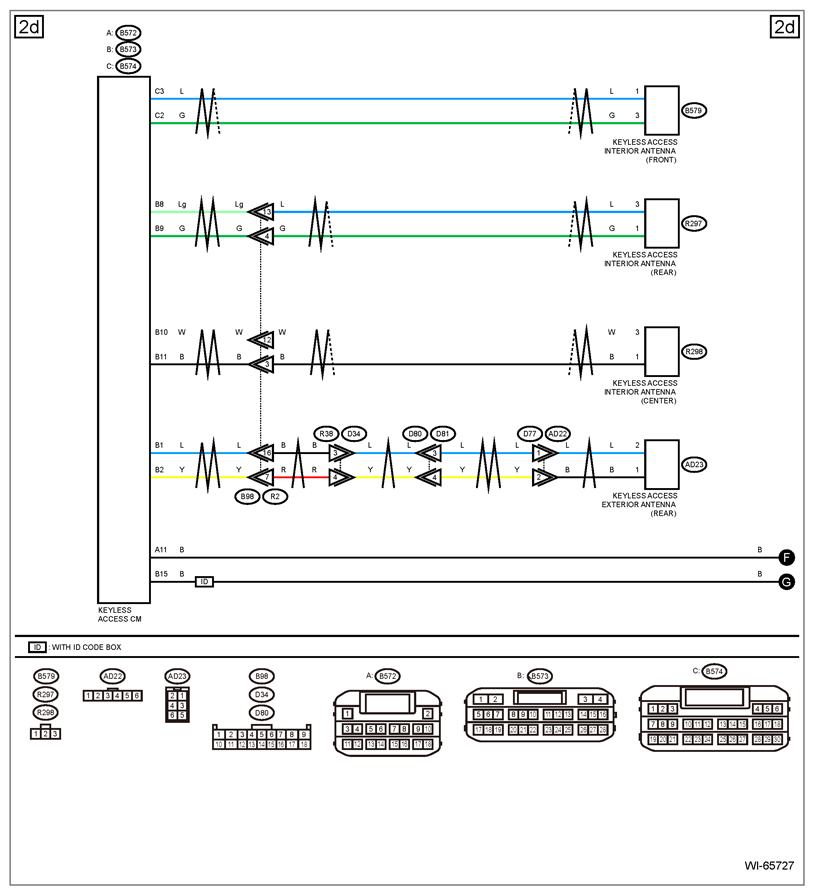

Fig 4: Turbo Model Push Button Start System Wiring Diagram (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

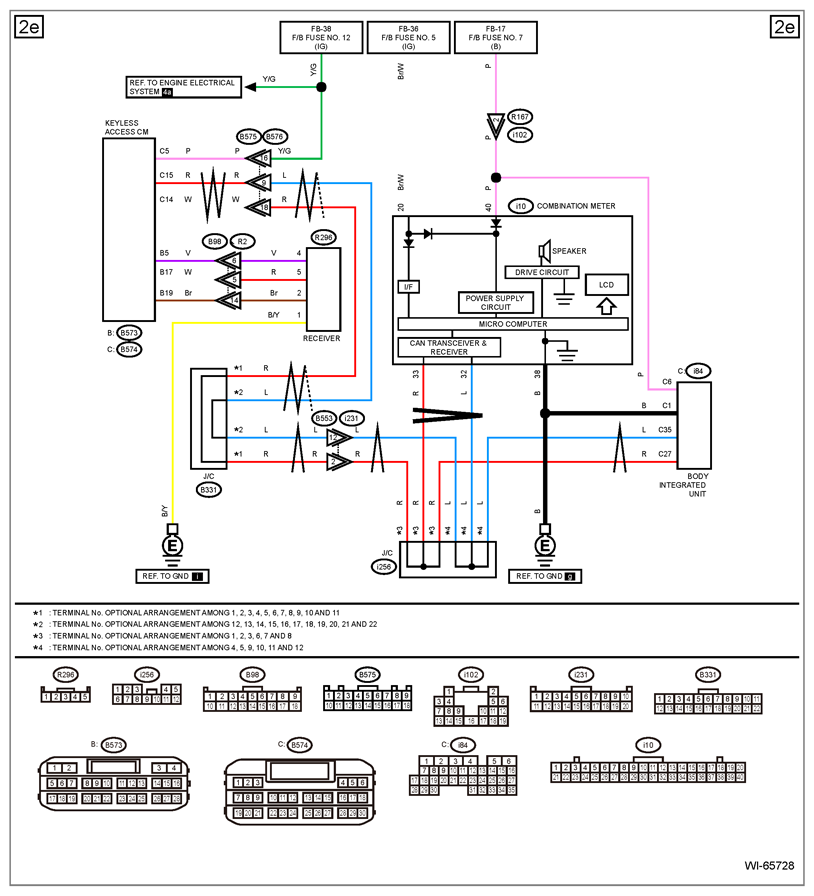

Fig 5: Turbo Model Push Button Start System Wiring Diagram (5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

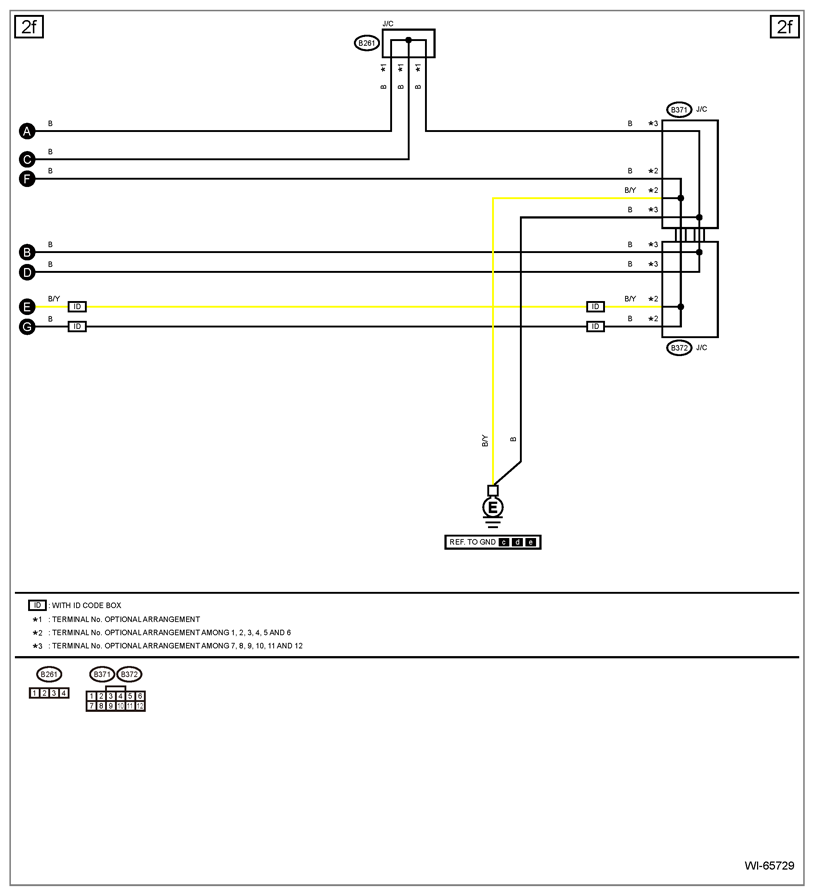

Fig 6: Turbo Model Push Button Start System Wiring Diagram (6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
