Passenger Side Without Auto-Reverse Function

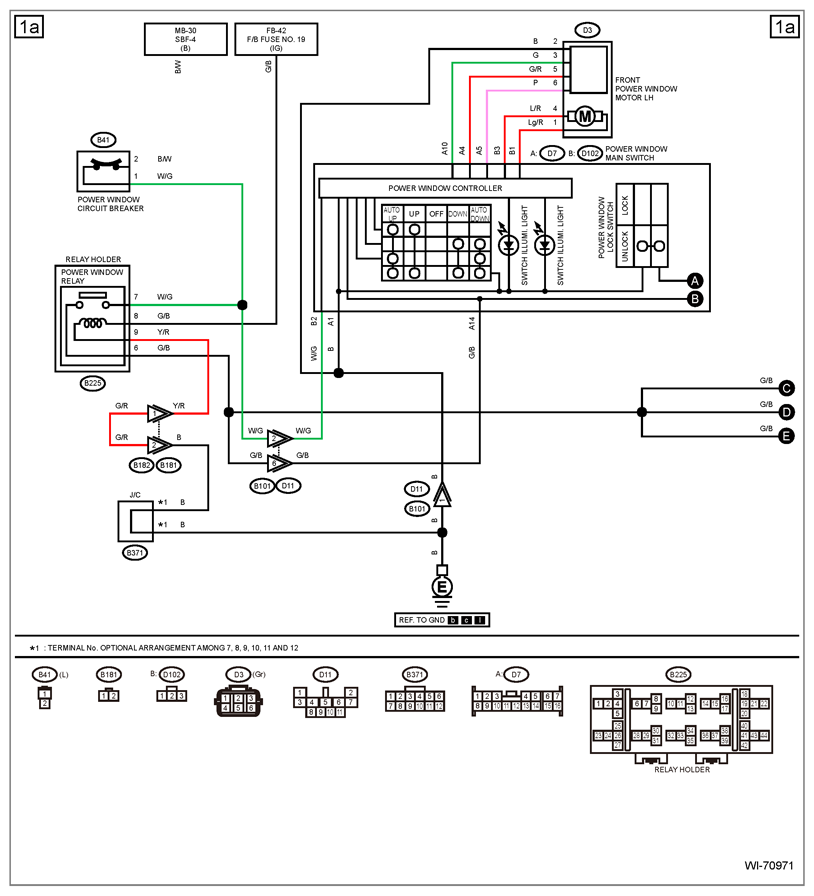

Fig 1: Passenger Side Without Auto-Reverse Function Power Window System Wiring Diagram (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

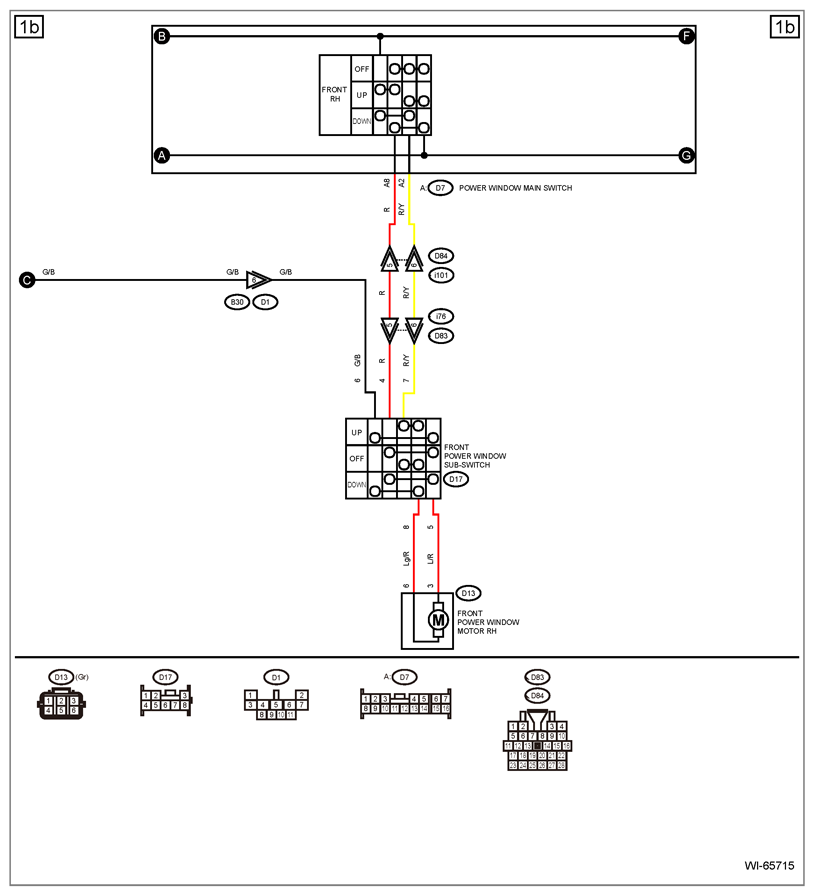

Fig 2: Passenger Side Without Auto-Reverse Function Power Window System Wiring Diagram (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

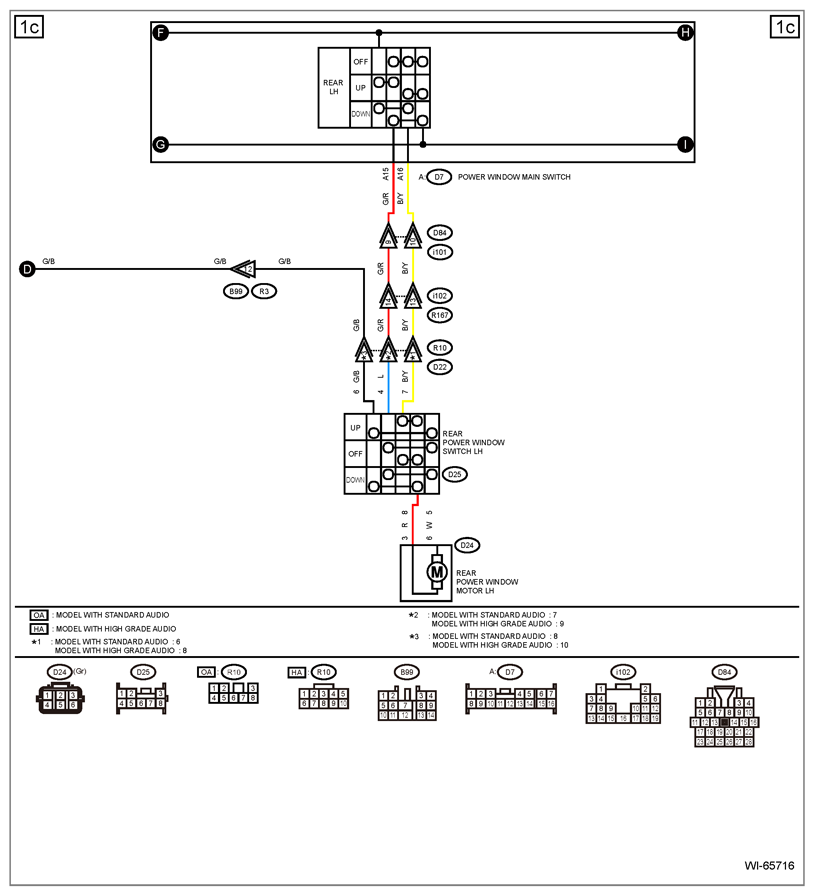

Fig 3: Passenger Side Without Auto-Reverse Function Power Window System Wiring Diagram (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

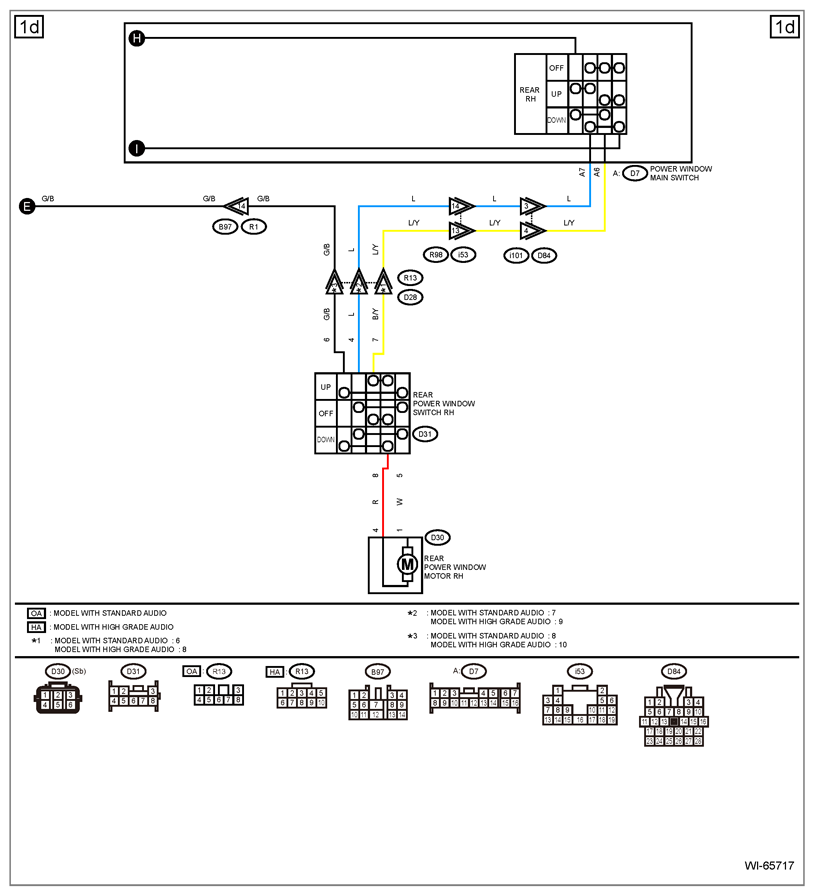

Fig 4: Passenger Side Without Auto-Reverse Function Power Window System Wiring Diagram (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
