Power Seat System
>>
Wiring Diagram
>>
Driver's Seat Without Memory
Driver's Seat Without Memory

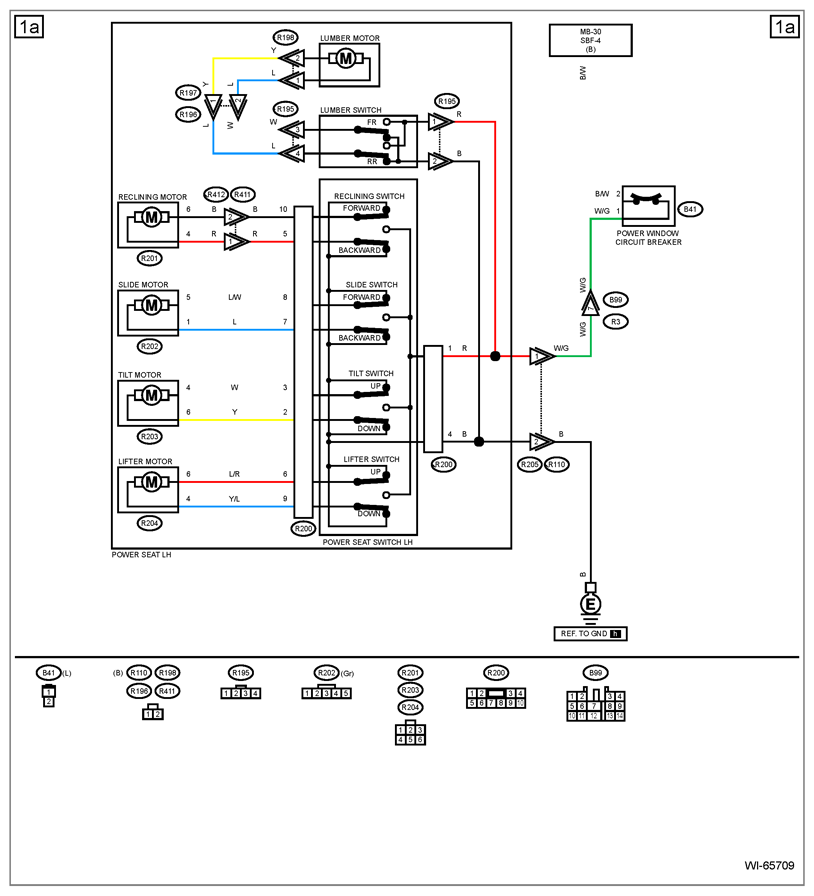

Fig 1: Driver Seat Without Memory Power Seat System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
