Driver's Seat With Memory

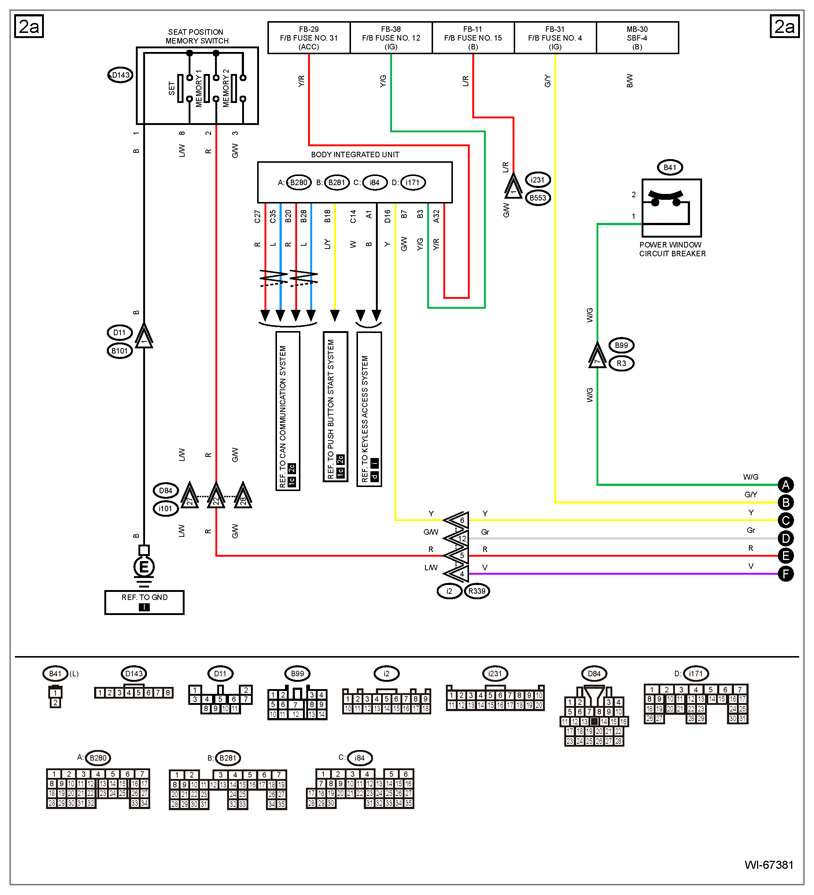

Fig 1: Driver Seat With Memory Power Seat System Wiring Diagram (1 Of 3)
G11272483Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Driver Seat With Memory Power Seat System Wiring Diagram (2 Of 3)
G11272484Courtesy of SUBARU OF AMERICA, INC.

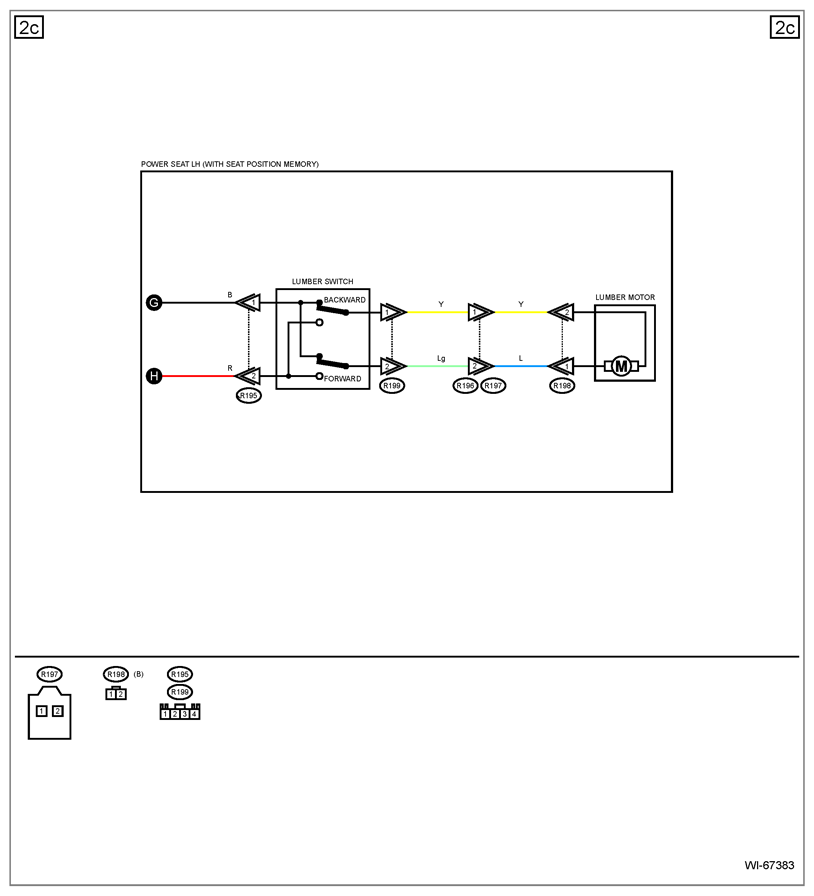

Fig 3: Driver Seat With Memory Power Seat System Wiring Diagram (3 Of 3)
G11272485Courtesy of SUBARU OF AMERICA, INC.
