With Audio Amplifier, Without Telematics: Notes

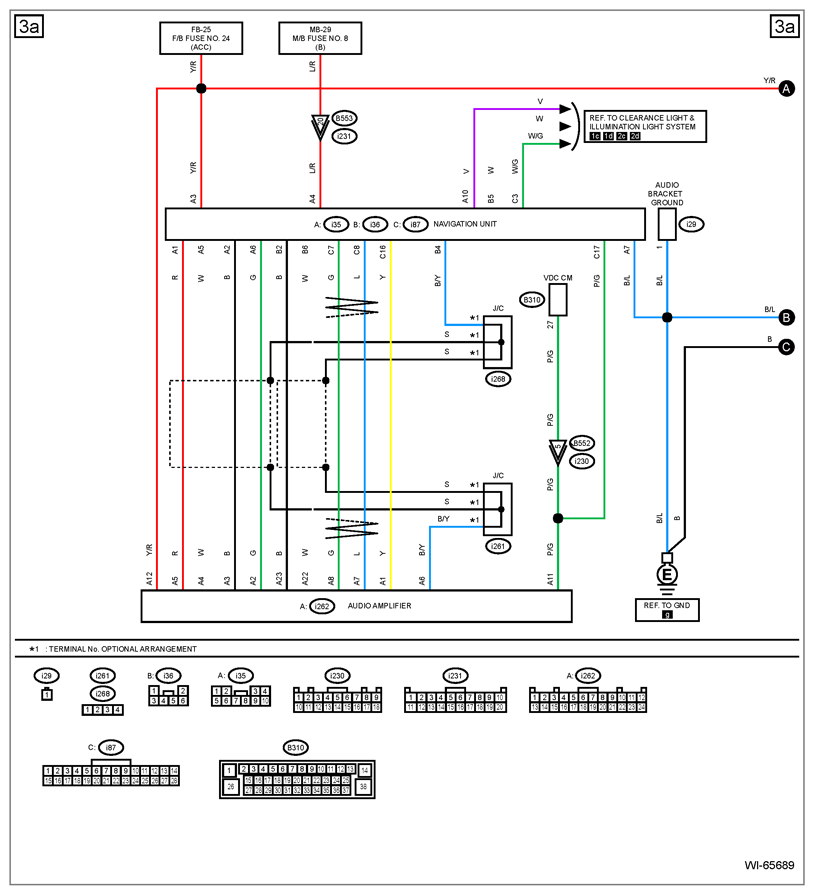

Fig 1: Navigation System Wiring Diagram With Audio Amplifier And Without Telematics (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

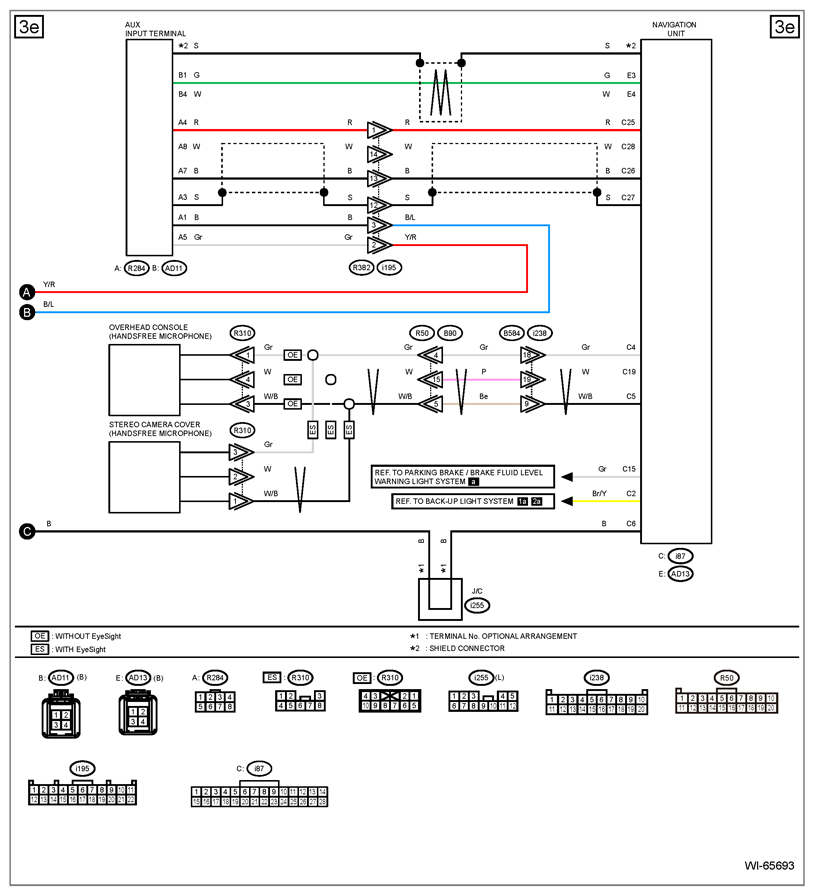

Fig 2: Navigation System Wiring Diagram With Audio Amplifier And Without Telematics (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

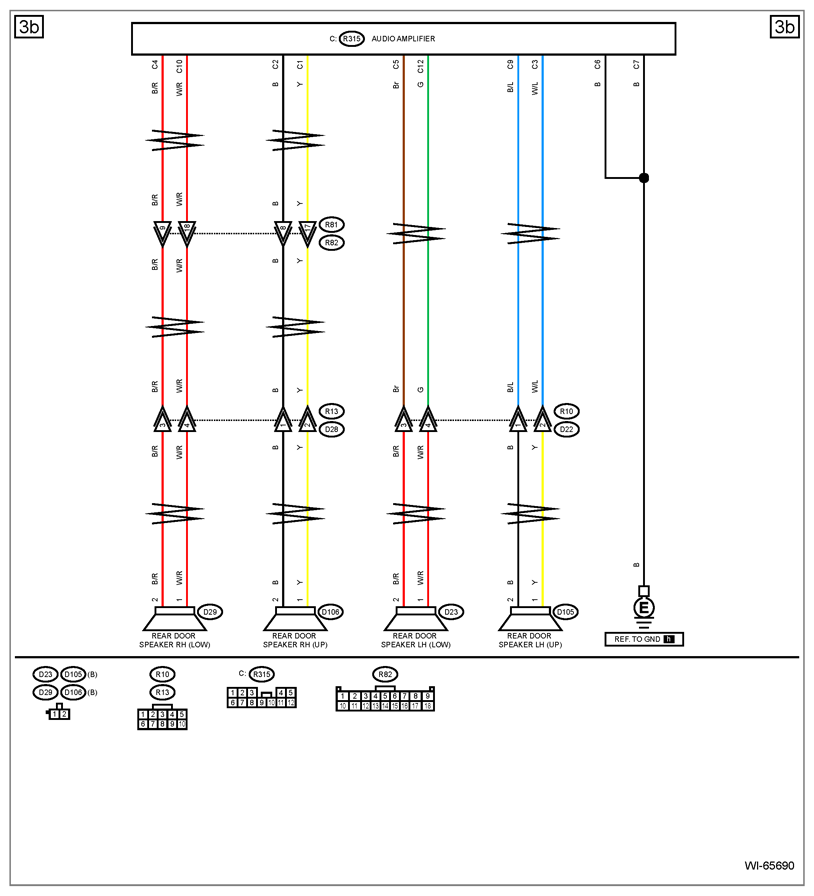

Fig 3: Navigation System Wiring Diagram With Audio Amplifier And Without Telematics (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

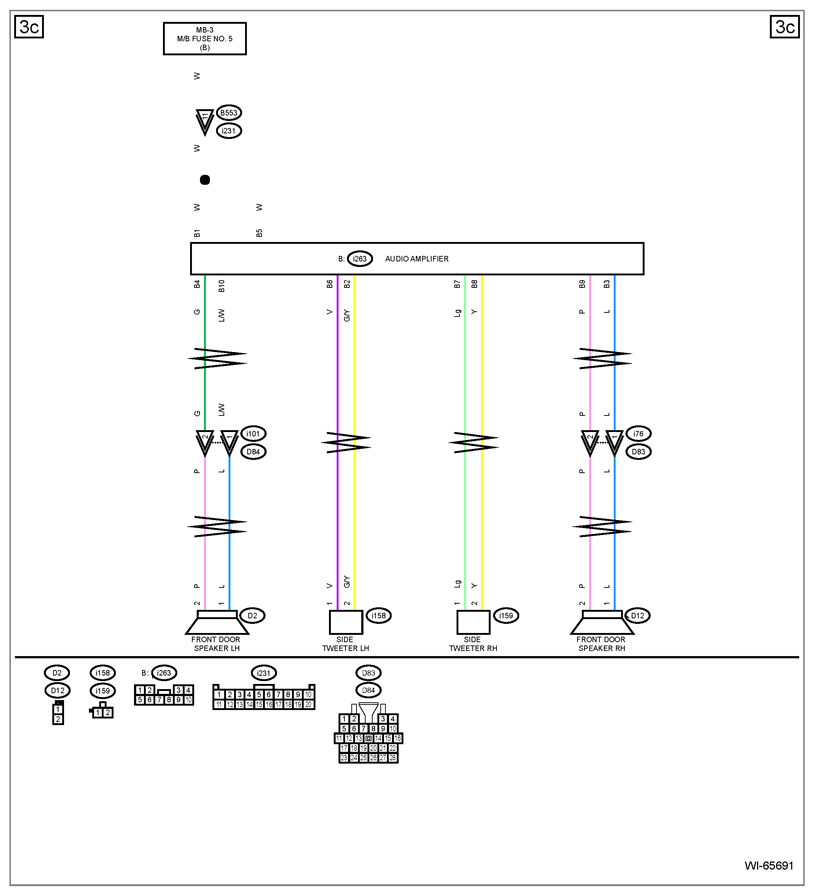

Fig 4: Navigation System Wiring Diagram With Audio Amplifier And Without Telematics (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

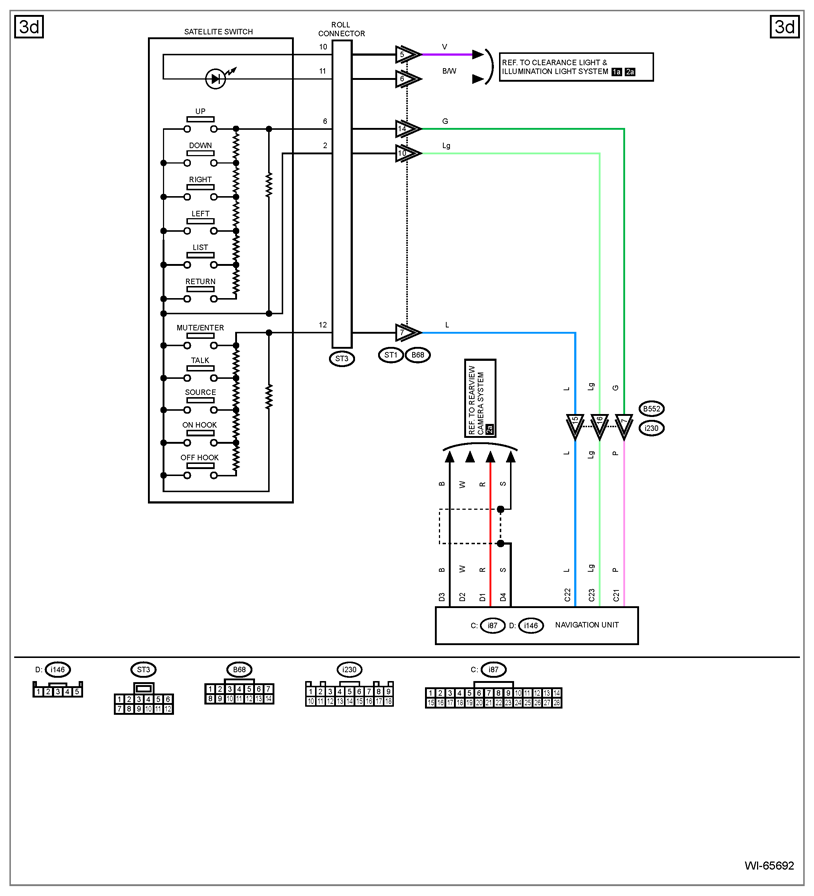

Fig 5: Navigation System Wiring Diagram With Audio Amplifier And Without Telematics (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

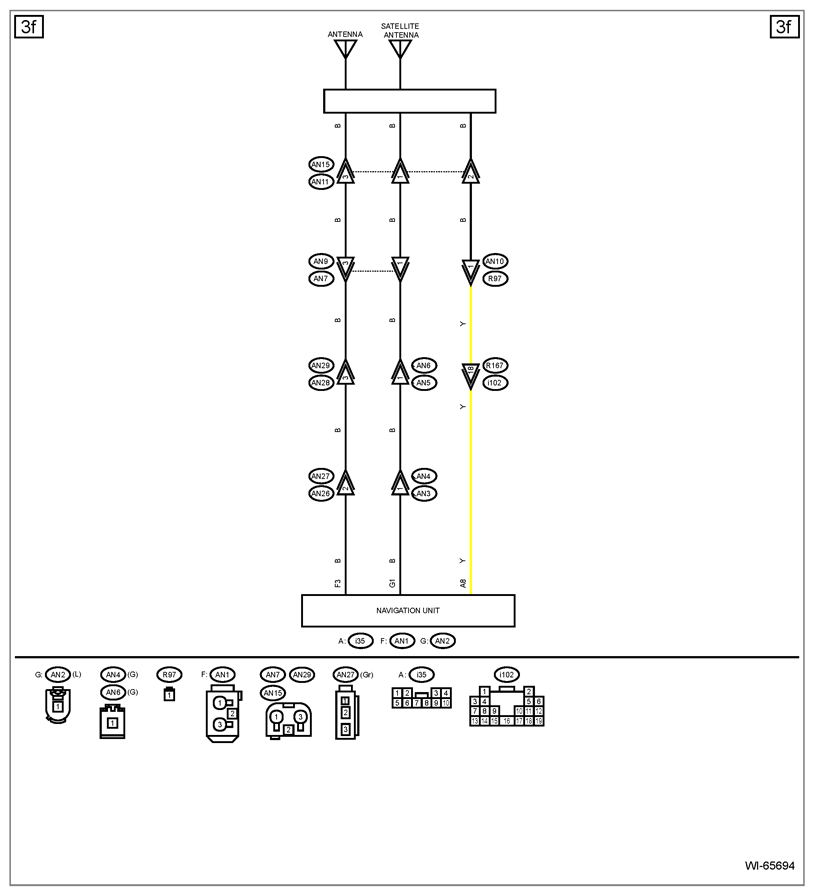

Fig 6: Navigation System Wiring Diagram With Audio Amplifier And Without Telematics (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
