OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Navigation System
>>
Wiring Diagram
>>
Without Audio Amplifier, Without Telematics
Without Audio Amplifier, Without Telematics

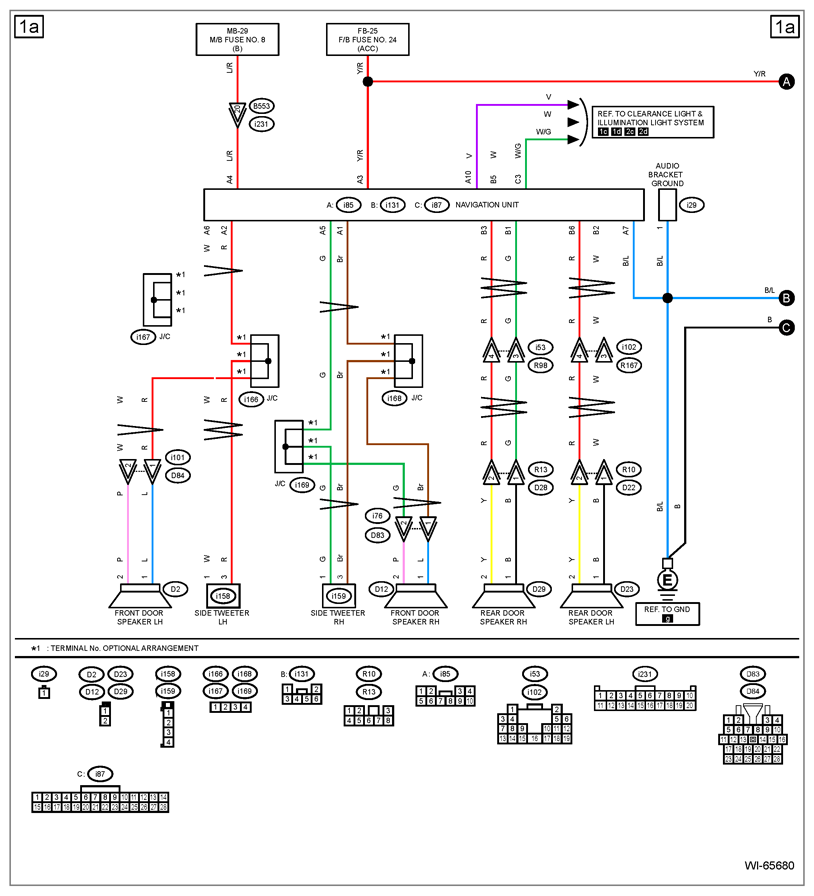

Fig 1: Navigation System Wiring Diagram Without Audio Amplifier And Telematics (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

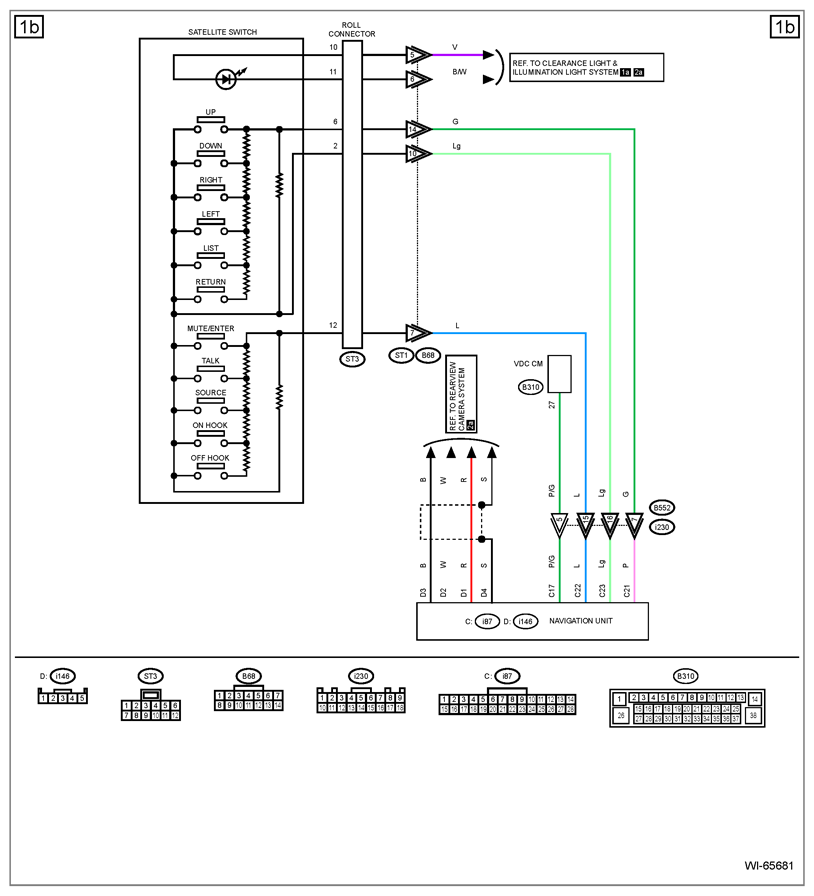

Fig 2: Navigation System Wiring Diagram Without Audio Amplifier And Telematics (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

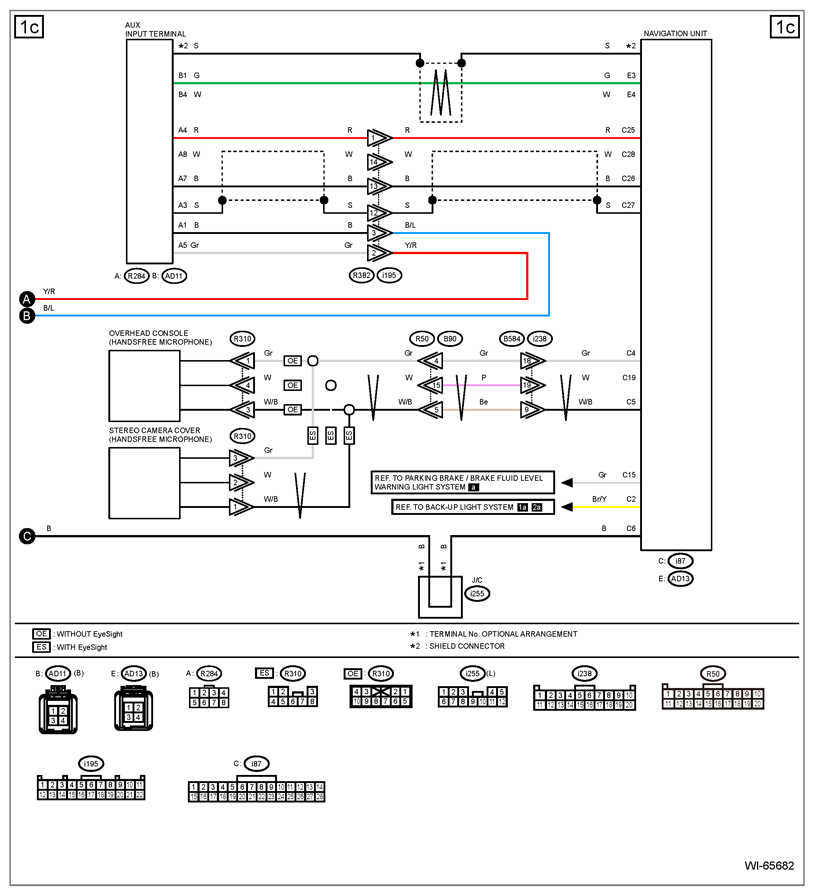

Fig 3: Navigation System Wiring Diagram Without Audio Amplifier And Telematics (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

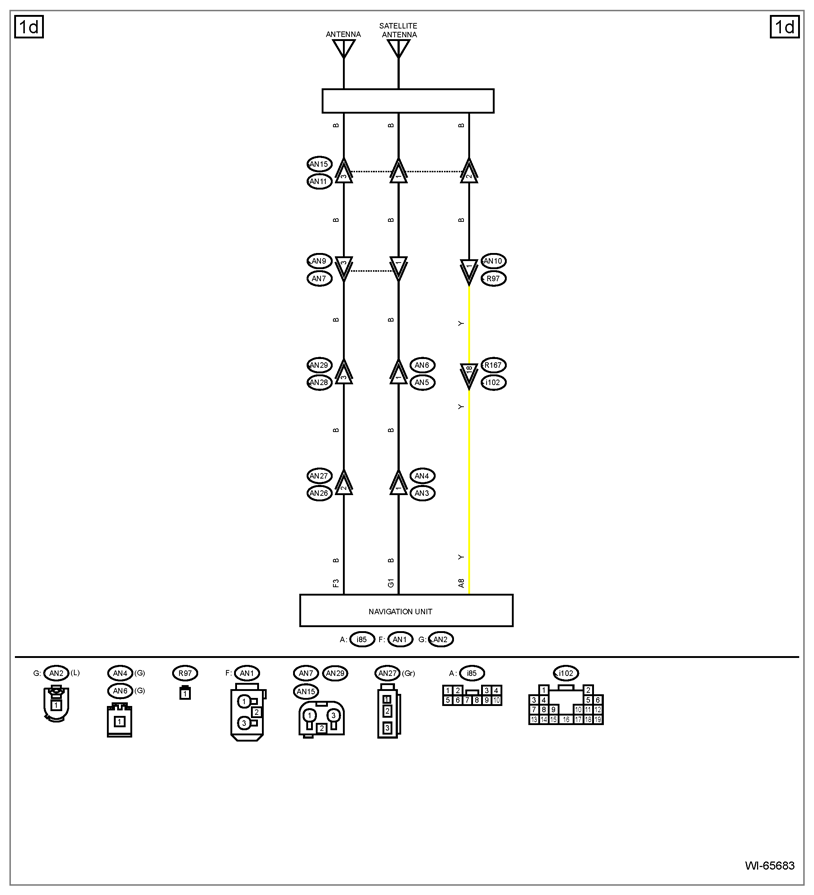

Fig 4: Navigation System Wiring Diagram Without Audio Amplifier And Telematics (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
