Without Audio Amplifier, With Telematics

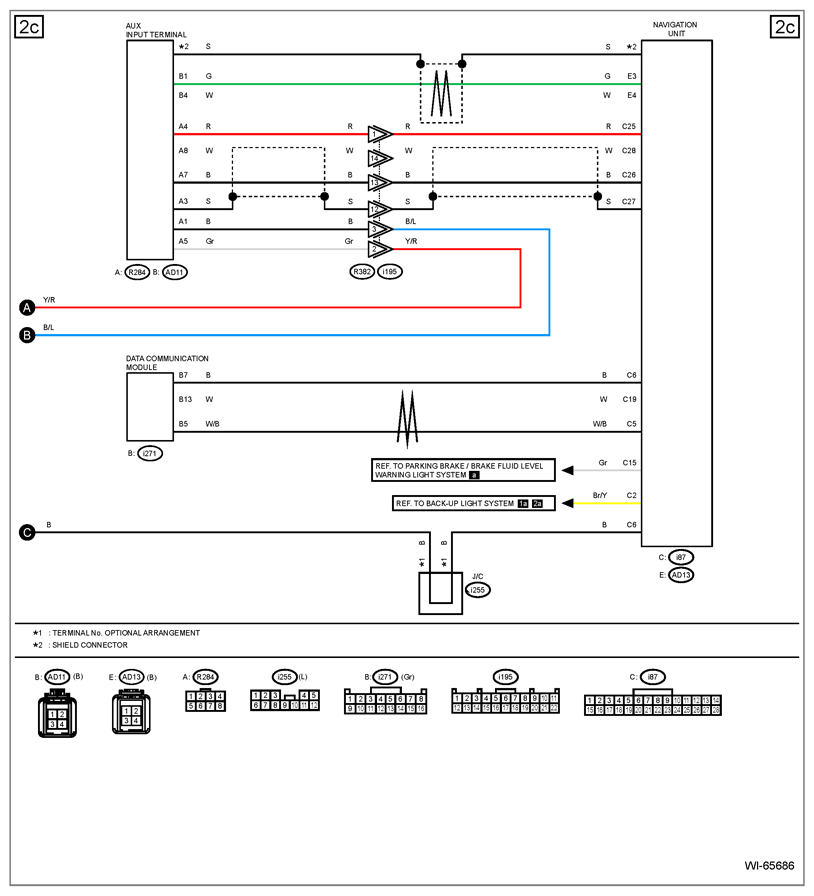

Fig 1: Navigation System Wiring Diagram Without Audio Amplifier And With Telematics (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

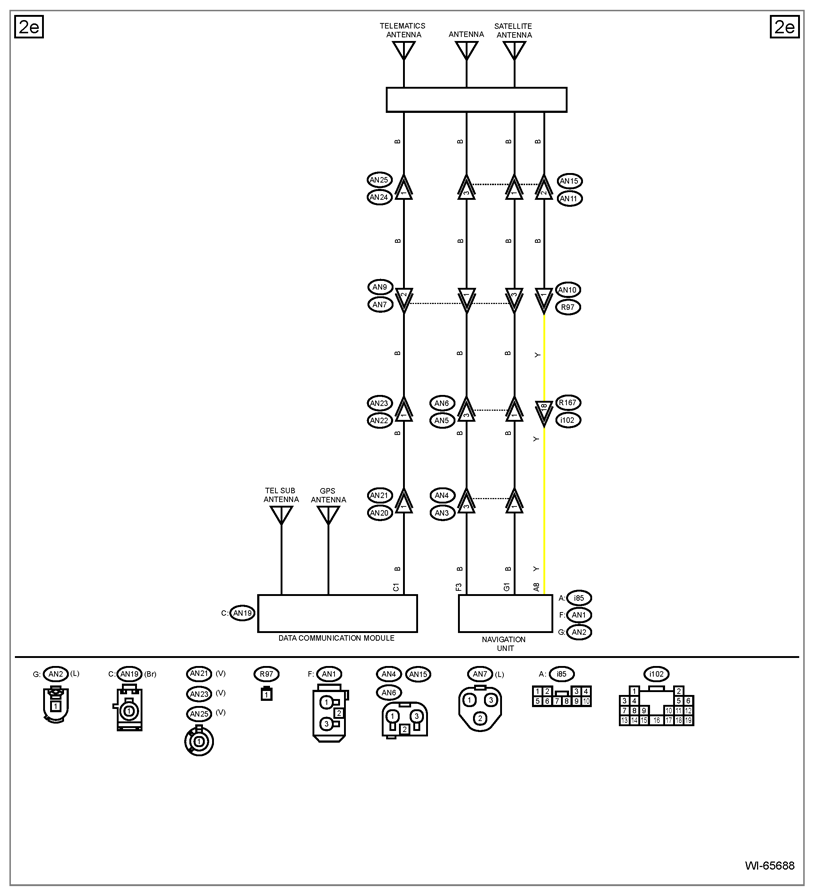

Fig 2: Navigation System Wiring Diagram Without Audio Amplifier And With Telematics (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

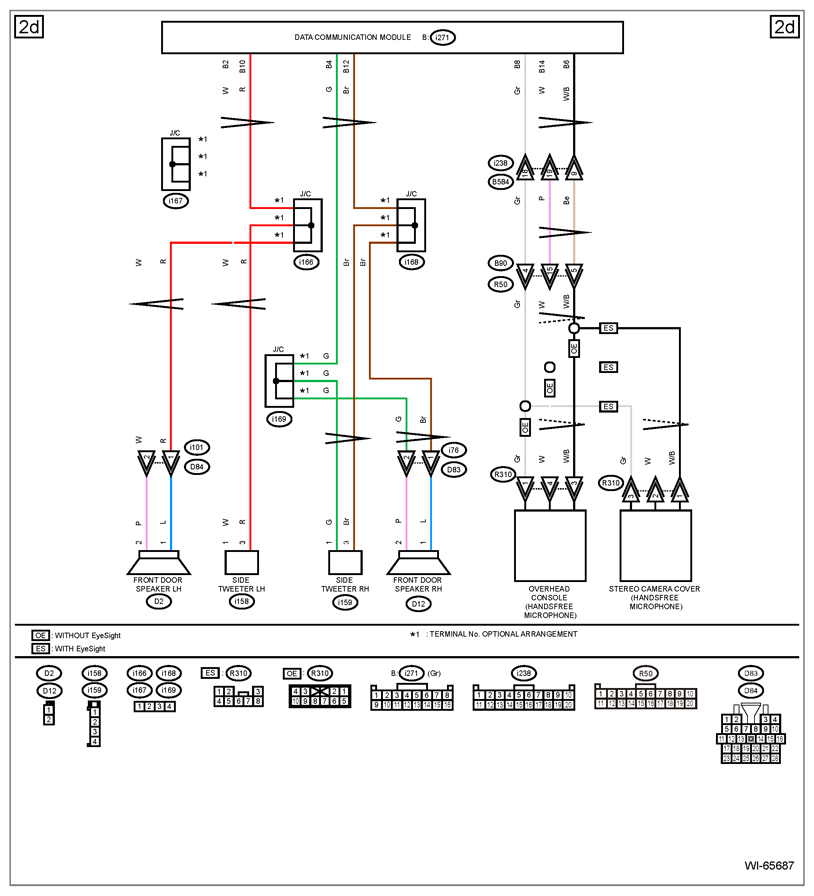

Fig 3: Navigation System Wiring Diagram Without Audio Amplifier And With Telematics (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

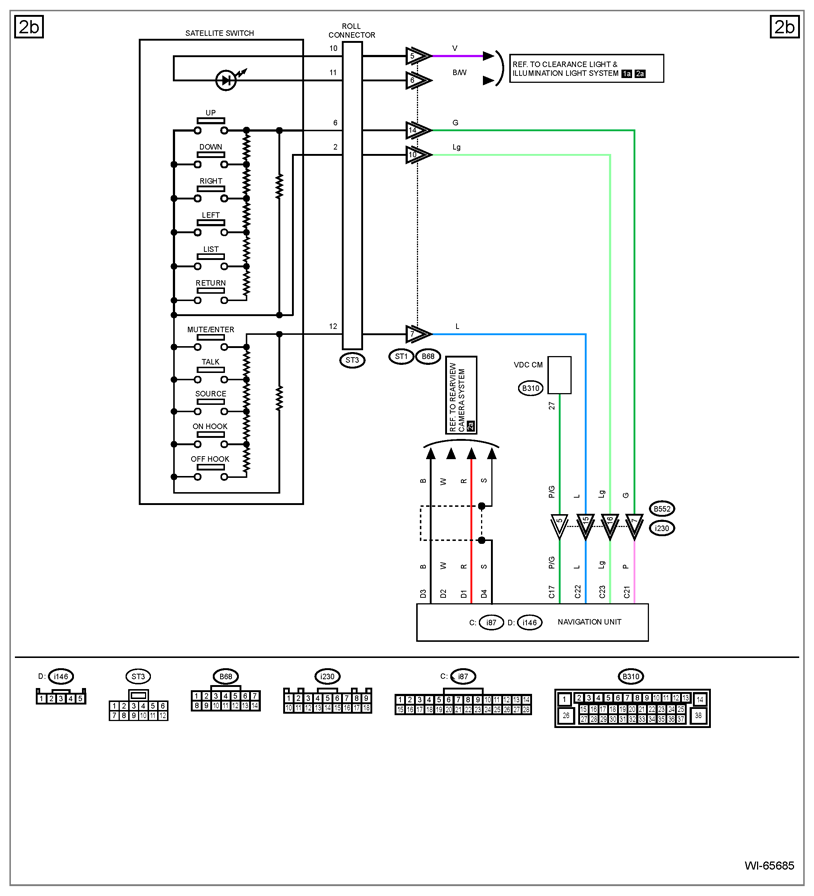

Fig 4: Navigation System Wiring Diagram Without Audio Amplifier And With Telematics (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

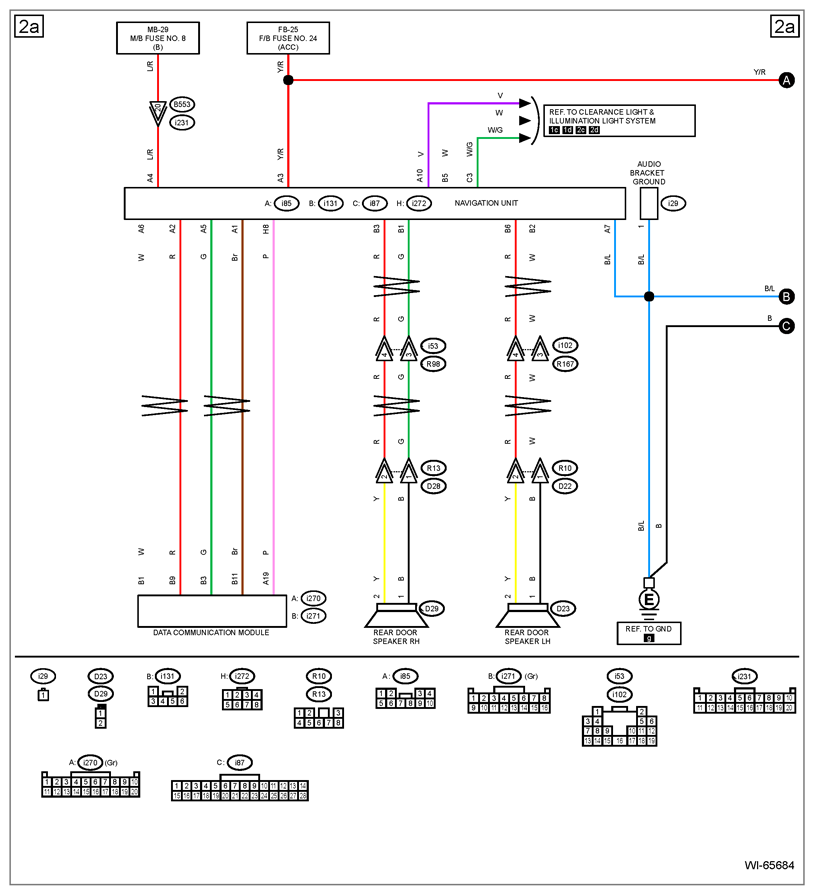

Fig 5: Navigation System Wiring Diagram Without Audio Amplifier And With Telematics (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
